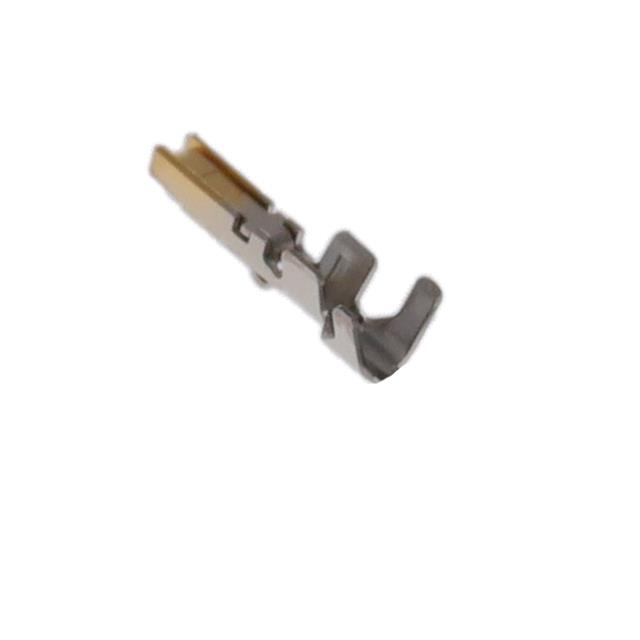

KW30-2830PCFA(800)

Active

Hirose Electric USA, Inc.

[SIGNALBEE ] 1MM PITCH, SINGLE-ROW, CENTER LOCK, WIRE-TO-BOARD CONNECTOR (UL/C-UL LISTED) ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

KW30-2830PCFA(800)

Active

Hirose Electric USA, Inc.

[SIGNALBEE ] 1MM PITCH, SINGLE-ROW, CENTER LOCK, WIRE-TO-BOARD CONNECTOR (UL/C-UL LISTED) ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	KW30-2830PCFA(800)

Contact Finish	Gold
Contact Finish Thickness	7.87 µin
Contact Finish Thickness	0.2 µm
Contact Termination	Crimp
Pin or Socket	Socket
Type	Stamped
Wire Gauge [Max]	30 AWG
Wire Gauge [Min]	27.5 AWG

KW30 Series

Part	Mated Stacking Heights	Contact Material	Shrouding	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Insulation Color	Voltage Rating	Number of Positions Loaded	Connector Type	Number of Rows	Features	Contact Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Height	Insulation Height	Contact Finish - Mating	Termination	Mounting Type	Style	Insulation Material	Current Rating (Amps)	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Pitch - Mating	Pitch - Mating	Number of Positions	Note	Pitch [x]	Pitch [x]	Color	Contact Termination	Contact Finish Thickness	Contact Finish Thickness	Pin or Socket	Type	Wire Gauge [Max]	Wire Gauge [Min]	Contact Finish
Hirose Electric USA, Inc. KW30-3S-1V(800)	17.5 mm	Copper Alloy	Shrouded - 4 Wall	Gold	0.203 Ám	8 Áin	Latch Lock	Black	100 VAC	All	Header	1	Pick and Place Solder Retention	Male Pin	2 µin	0.051 µm	5.69 mm	0.224 in	Gold	Solder	Surface Mount	Board to Cable/Wire	Liquid Crystal Polymer (LCP)	Varies by Wire Gauge	UL94 V-0	105 ░C	-55 °C	0.039 in	1 mm
Hirose Electric USA, Inc. KW30-10S-1V(800)	17.5 mm	Copper Alloy	Shrouded - 4 Wall	Gold	0.203 Ám	8 Áin	Latch Lock	Black	100 VAC	All	Header	1	Pick and Place Solder Retention	Male Pin	2 µin	0.051 µm	5.69 mm	0.224 in	Gold	Solder	Surface Mount	Board to Cable/Wire	Liquid Crystal Polymer (LCP)	Varies by Wire Gauge	UL94 V-0	105 ░C	-55 °C	0.039 in	1 mm	10
Hirose Electric USA, Inc. KW30-6S-1H(800)		Copper Alloy	Shrouded - 4 Wall	Gold	0.203 Ám	8 Áin	Latch Lock	Black	100 VAC	All	Header	1	Pick and Place Solder Retention	Male Pin	2 µin	0.051 µm	3.96 mm	0.156 in	Gold	Solder	Surface Mount Right Angle	Board to Cable/Wire	Liquid Crystal Polymer (LCP)	Varies by Wire Gauge	UL94 V-0	105 ░C	-55 °C	0.039 in	1 mm	6
Hirose Electric USA, Inc. KW30-2S-2H(800)		Copper Alloy	Shrouded - 4 Wall	Gold	0.203 Ám	8 Áin	Latch Lock	Black	100 VAC	All	Header	1	Pick and Place Solder Retention	Male Pin	2 µin	0.051 µm	3.96 mm	0.156 in	Gold	Solder	Surface Mount Right Angle	Board to Cable/Wire	Liquid Crystal Polymer (LCP)	Varies by Wire Gauge	UL94 V-0	105 ░C	-55 °C	0.039 in	1 mm	2
Hirose Electric USA, Inc. KW30-10P-1C(800)							Latch Holder				Plug	1		Female Socket							Free Hanging (In-Line)		Polyamide (PA66) Nylon 6/6			105 ░C	-55 °C			10	Contacts Not Included	0.039 in	1 mm	Black	Crimp
Hirose Electric USA, Inc. KW30-15S-1H(800)		Copper Alloy	Shrouded - 4 Wall	Gold	0.203 Ám	8 Áin	Latch Lock	Black	100 VAC	All	Header	1	Pick and Place Solder Retention	Male Pin	2 µin	0.051 µm	3.96 mm	0.156 in	Gold	Solder	Surface Mount Right Angle	Board to Cable/Wire	Liquid Crystal Polymer (LCP)	Varies by Wire Gauge	UL94 V-0	105 ░C	-55 °C	0.039 in	1 mm	15
Hirose Electric USA, Inc. KW30-15P-1C(800)							Latch Holder				Plug	1		Female Socket							Free Hanging (In-Line)		Polyamide (PA66) Nylon 6/6			105 ░C	-55 °C			15	Contacts Not Included	0.039 in	1 mm	Black	Crimp
Hirose Electric USA, Inc. KW30-8S-1H(800)		Copper Alloy	Shrouded - 4 Wall	Gold	0.203 Ám	8 Áin	Latch Lock	Black	100 VAC	All	Header	1	Pick and Place Solder Retention	Male Pin	2 µin	0.051 µm	3.96 mm	0.156 in	Gold	Solder	Surface Mount Right Angle	Board to Cable/Wire	Liquid Crystal Polymer (LCP)	Varies by Wire Gauge	UL94 V-0	105 ░C	-55 °C	0.039 in	1 mm	8
Hirose Electric USA, Inc. KW30-2830PCFA(800)																																			Crimp	7.87 µin	0.2 µm	Socket	Stamped	30 AWG	27.5 AWG	Gold
Hirose Electric USA, Inc. KW30-6S-1V(800)	17.5 mm	Copper Alloy	Shrouded - 4 Wall	Gold	0.203 Ám	8 Áin	Latch Lock	Black	100 VAC	All	Header	1	Pick and Place Solder Retention	Male Pin	2 µin	0.051 µm	5.69 mm	0.224 in	Gold	Solder	Surface Mount	Board to Cable/Wire	Liquid Crystal Polymer (LCP)	Varies by Wire Gauge	UL94 V-0	105 ░C	-55 °C	0.039 in	1 mm	6

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.16
		10	$ 0.12
		25	$ 0.10
		50	$ 0.09
		100	$ 0.09
		250	$ 0.08
		500	$ 0.08
		1000	$ 0.07
		2500	$ 0.06
	Tape & Reel (TR)	20000	$ 0.05
		40000	$ 0.04
		60000	$ 0.04
		100000	$ 0.04
		140000	$ 0.04
Newark	Each (Supplied on Full Reel)	1	$ 0.07
		100000	$ 0.06

Description

General part information

KW30 Series

Socket Contact Gold 28-30 AWG Crimp Stamped
