G125-32496M1-02-08-02

Active

Harwin Inc.

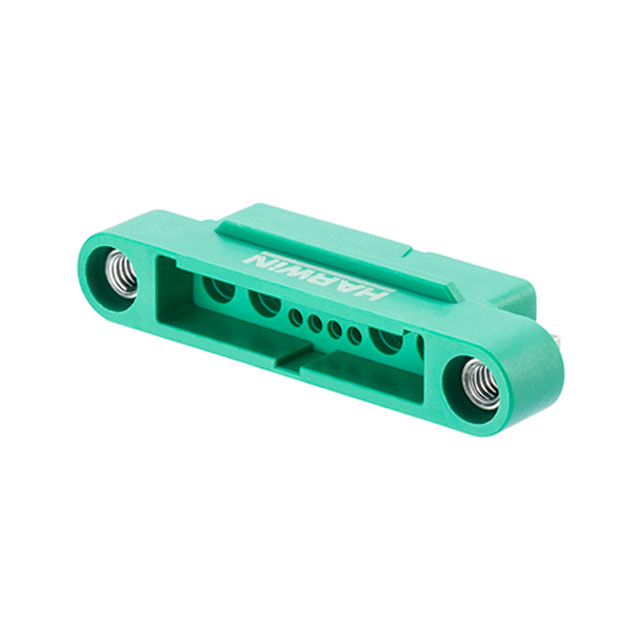

CONNECTOR HOUSING, BLACK / GREEN, GECKO-MT G125 SERIES, PLUG, 12 POSITIONS, G125 SERIES CONTACTS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsG125-1500005 Z125-903 +5

G125-32496M1-02-08-02

Active

Harwin Inc.

CONNECTOR HOUSING, BLACK / GREEN, GECKO-MT G125 SERIES, PLUG, 12 POSITIONS, G125 SERIES CONTACTS

Deep-Dive with AI

DocumentsG125-1500005 Z125-903 +5

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	G125-32496M1-02-08-02

Color	Green
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Male Pin
Features	Threaded Inserts, Polarizing Key
Insulation Material	Polyamide (PA4T), Nylon 4T, Halogen Free, Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions [custom]	4
Number of Positions [custom]	12
Number of Positions [custom]	8
Number of Rows	2
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-65 ░C
Pitch [x]	0.049 in
Pitch [x]	1.25 mm
Row Spacing	1.25 mm
Row Spacing	0.049 in

G125-324 Series

Part	Number of Rows	Color	Pitch [x]	Pitch [x]	Contact Termination	Connector Type	Mounting Type	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Row Spacing	Row Spacing	Features	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Contact Type	Note	Number of Positions
Harwin Inc. G125-32496M3-02-08-02	2	Green	0.049 in	1.25 mm	Crimp	Plug	Free Hanging (In-Line)	4	12	8	1.25 mm	0.049 in	Jackscrews Mating Flange Polarizing Key	-65 ░C	150 °C	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Male Pin	Contacts Not Included
Harwin Inc. G125-3241296M2	2	Green	0.049 in	1.25 mm	Crimp	Plug					1.25 mm	0.049 in	Mating Flange Mounting Flange Polarizing Key Threaded Inserts	-65 ░C	150 °C	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Male Pin	Contacts Not Included	12
Harwin Inc. G125-3242696M1	2	Green	0.049 in	1.25 mm	Crimp	Plug	Free Hanging (In-Line)				1.25 mm	0.049 in	Threaded Inserts	-65 ░C	150 °C	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Male Pin	Contacts Not Included	26
Harwin Inc. G125-3240696M3	2	Green	0.049 in	1.25 mm	Crimp	Plug	Free Hanging (In-Line)				1.25 mm	0.049 in	Jackscrews Mating Flange Polarizing Key	-65 ░C	150 °C	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Male Pin	Contacts Not Included	6
Harwin Inc. G125-32496M1-02-08-02	2	Green	0.049 in	1.25 mm	Crimp	Plug	Free Hanging (In-Line)	4	12	8	1.25 mm	0.049 in	Polarizing Key Threaded Inserts	-65 ░C	150 °C	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Male Pin	Contacts Not Included
Harwin Inc. G125-3243496M1	2	Green	0.049 in	1.25 mm	Crimp	Plug	Free Hanging (In-Line)				1.25 mm	0.049 in	Threaded Inserts	-65 ░C	150 °C	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Male Pin	Contacts Not Included	34
Harwin Inc. G125-3245096M1	2	Green	0.049 in	1.25 mm	Crimp	Plug	Free Hanging (In-Line)				1.25 mm	0.049 in	Threaded Inserts	-65 ░C	150 °C	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Male Pin	Contacts Not Included	50
Harwin Inc. G125-3242096M1	2	Green	0.049 in	1.25 mm	Crimp	Plug	Free Hanging (In-Line)				1.25 mm	0.049 in	Threaded Inserts	-65 ░C	150 °C	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Male Pin	Contacts Not Included	20
Harwin Inc. G125-3242096M2	2	Green	0.049 in	1.25 mm	Crimp	Plug					1.25 mm	0.049 in	Mating Flange Mounting Flange Polarizing Key Threaded Inserts	-65 ░C	150 °C	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Male Pin	Contacts Not Included	20
Harwin Inc. G125-3241096M1	2	Green	0.049 in	1.25 mm	Crimp	Plug	Free Hanging (In-Line)				1.25 mm	0.049 in	Threaded Inserts	-65 ░C	150 °C	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Male Pin	Contacts Not Included	10

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 16.04
		10	$ 13.63
		25	$ 14.12
		30	$ 12.62
		50	$ 12.17
		100	$ 11.59
		250	$ 10.86
		500	$ 10.35
		1000	$ 9.85
Newark	Each	25	$ 12.21
		50	$ 11.34
		100	$ 10.66
		250	$ 9.84

Description

General part information

G125-324 Series

12 (8 + 4 Power) Rectangular Connectors - Housings Plug Green 0.049" (1.25mm)
