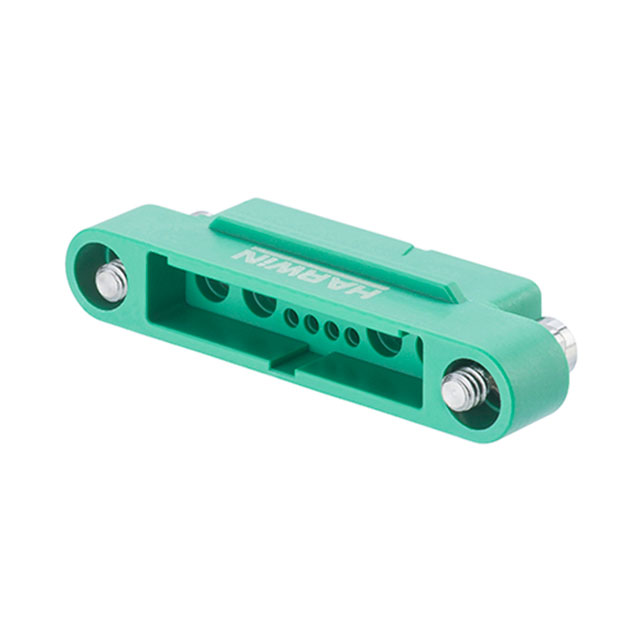

G125-32496M3-02-08-02 - G125-32496M3-02-08-02

G125-32496M3-02-08-02

Active
Harwin Inc.

CONNECTOR HOUSING, BLACK / GREEN, GECKO-MT G125 SERIES, PLUG, 12 POSITIONS, G125 SERIES CONTACTS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsG125-1500005Datasheet+5
G125-32496M3-02-08-02 - G125-32496M3-02-08-02

G125-32496M3-02-08-02

Active
Harwin Inc.

CONNECTOR HOUSING, BLACK / GREEN, GECKO-MT G125 SERIES, PLUG, 12 POSITIONS, G125 SERIES CONTACTS

Deep-Dive with AI

DocumentsG125-1500005Datasheet+5

Technical Specifications

Parameters and characteristics for this part

SpecificationG125-32496M3-02-08-02
ColorGreen
Connector TypePlug
Contact TerminationCrimp
Contact TypeMale Pin
FeaturesJackscrews, Mating Flange, Polarizing Key
Insulation MaterialPolyamide (PA4T), Nylon 4T, Halogen Free, Glass Filled
Mounting TypeFree Hanging (In-Line)
NoteContacts Not Included
Number of Positions [custom]4
Number of Positions [custom]12
Number of Positions [custom]8
Number of Rows2
Operating Temperature [Max]150 °C
Operating Temperature [Min]-65 ░C
Pitch [x]0.049 in
Pitch [x]1.25 mm
Row Spacing1.25 mm
Row Spacing0.049 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBag 1$ 20.39
10$ 17.33
30$ 16.04
50$ 15.47
100$ 14.73
250$ 13.81
500$ 13.15
NewarkEach 25$ 19.44
50$ 18.41
100$ 17.39
250$ 15.86
500$ 14.83
1000$ 13.61

Description

General part information

G125-324 Series

12 (8 + 4 Power) Rectangular Connectors - Housings Plug Green 0.049" (1.25mm)
