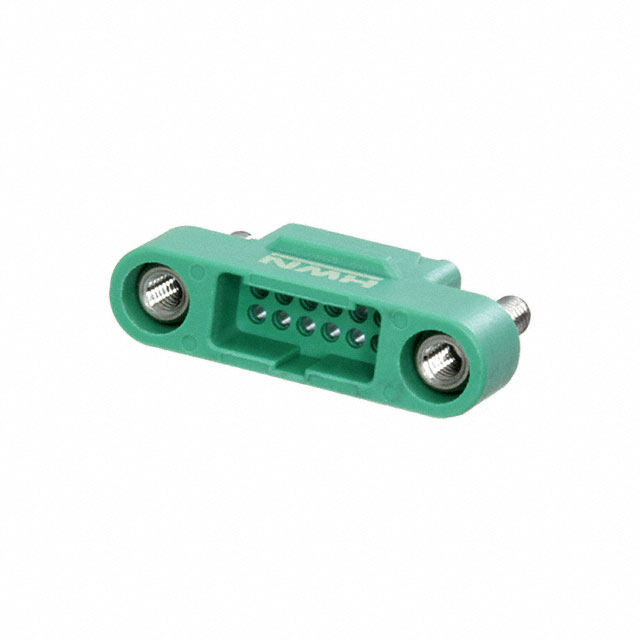

G125-3241296M2
ActiveHarwin Inc.
CONN PLUG HSG 12POS 1.25MM
Deep-Dive with AI
Search across all available documentation for this part.
G125-3241296M2
ActiveHarwin Inc.
CONN PLUG HSG 12POS 1.25MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | G125-3241296M2 |
|---|---|
| Color | Green |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Male Pin |
| Features | Polarizing Key, Mounting Flange, Mating Flange, Threaded Inserts |
| Insulation Material | Polyamide (PA4T), Nylon 4T, Halogen Free, Glass Filled |
| Note | Contacts Not Included |
| Number of Positions | 12 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -65 ░C |
| Pitch [x] | 0.049 in |
| Pitch [x] | 1.25 mm |
| Row Spacing | 1.25 mm |
| Row Spacing | 0.049 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 8.52 | |
| 10 | $ 7.67 | |||
| 30 | $ 7.23 | |||
| 50 | $ 7.04 | |||
| 100 | $ 6.86 | |||
| 250 | $ 6.11 | |||
| 500 | $ 5.74 | |||
| 1000 | $ 5.08 | |||
Description
General part information
G125-324 Series
12 Rectangular Connectors - Housings Plug Green 0.049" (1.25mm)
