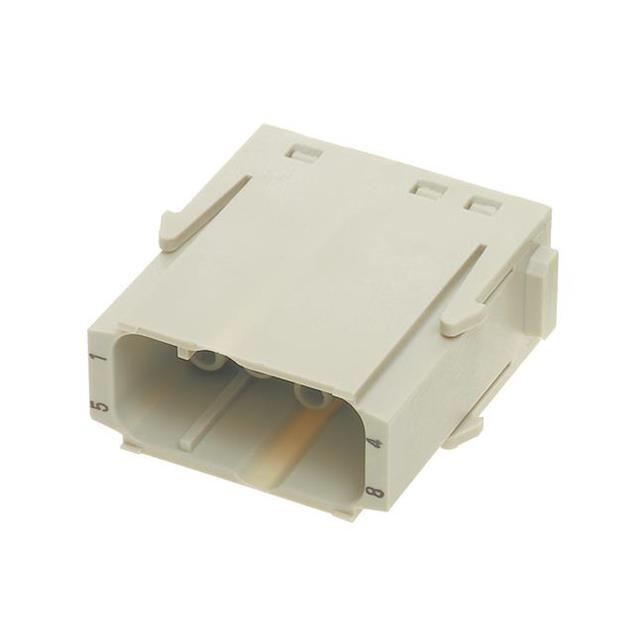

HEAVY DUTY CONNECTOR, PIN MODULE, LESS CONTACTS, HAN-MODULAR EE SERIES, MODULE, 8 CONTACTS, PLUG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

09140083001

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, PIN MODULE, LESS CONTACTS, HAN-MODULAR EE SERIES, MODULE, 8 CONTACTS, PLUG

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	09140083001

Color	Gray
Connector Type	Module without Contacts
Contact Type	Han®
Current Rating (Amps)	16 A
Gender	Male
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions	8
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Termination Style	Crimp
Voltage Rating	400 V

09140083 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Gender	Connector Type	Voltage Rating	Current Rating (Amps)	Housing Material	Material Flammability Rating	Number of Positions	Color	Termination Style	Contact Type
HARTING Technology Group 09140083132	85 °C	-40 °C	Female	Module without Contacts	50 V	5 A	Polycarbonate (PC)	UL94 V-0	8	Gray	Crimp
HARTING Technology Group 09140083131	85 °C	-40 °C	Male	Module without Contacts	50 V	5 A	Polycarbonate (PC)	UL94 V-0	8	Gray	Crimp
HARTING Technology Group 09140083042	85 °C	-40 °C	Male	Module without Contacts	50 V	10 A	Polycarbonate (PC)	UL94 V-0	8	Gray	Crimp
HARTING Technology Group 09140083141	85 °C	-40 °C	Female	Module without Contacts	50 V	7.5 A	Polycarbonate (PC)	UL94 V-0	8	Gray	Crimp
HARTING Technology Group 09140083117	85 °C	-40 °C	Female	Module without Contacts	50 V	10 A	Polycarbonate (PC)	UL94 V-0	8		Crimp	Han® D
HARTING Technology Group 09140083001	125 °C	-40 °C	Male	Module without Contacts	400 V	16 A	Polycarbonate (PC)	UL94 V-0	8	Gray	Crimp	Han®
HARTING Technology Group 09140083017	85 °C	-40 °C	Male	Module without Contacts	50 V	10 A	Polycarbonate (PC)	UL94 V-0	8		Crimp	Han® D
HARTING Technology Group 09140083101	125 °C	-40 °C	Female	Module without Contacts	400 V	16 A	Polycarbonate (PC)	UL94 V-0	8	Gray	Crimp	Han®
HARTING Technology Group 09140083021	85 °C	-40 °C	Male	Module without Contacts	50 V	10 A	Polycarbonate (PC)	UL94 V-0	8		Crimp	Han® D
HARTING Technology Group 09140083142	85 °C	-40 °C	Female	Module without Contacts	50 V	10 A	Polycarbonate (PC)	UL94 V-0	8	Gray	Crimp

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 14.41
		10	$ 10.40
		26	$ 9.21
		50	$ 8.52
		100	$ 7.87
		250	$ 7.14
		500	$ 6.67
		1000	$ 6.25
Newark	Each	1	$ 12.24
		10	$ 10.14
		25	$ 8.50
		50	$ 8.20
		100	$ 7.90
		250	$ 7.89
		500	$ 7.89

Description

General part information

09140083 Series

The 09140083001 is a 8-position Han EE Crimp Male Insert Module, 0.14 to 4mm² wire cross section area with crimp terminals. Made of polycarbonate, RAL 7032 (light grey) color. The Han-Modular® series is a heavy duty connector system that provides users with a very high degree of interconnect design and manufacturing flexibility. In addition to connections of electrical power and signals it is also possible to make pluggable connections for both optical and gaseous mediums with the Han-Modular® system.
