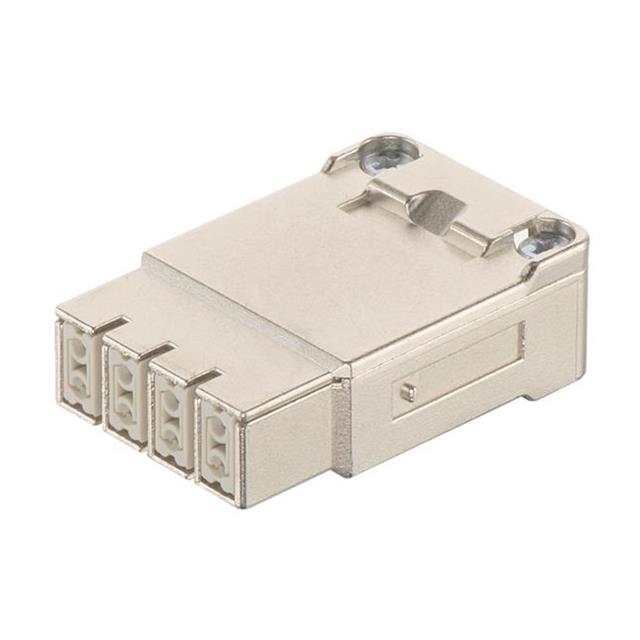

HEAVY DUTY CONNECTOR, HAN GIGABIT SERIES, INSERT, 8 CONTACTS, RECEPTACLE
Deep-Dive with AI
Search across all available documentation for this part.
09140083131
ActiveHARTING Technology Group
HEAVY DUTY CONNECTOR, HAN GIGABIT SERIES, INSERT, 8 CONTACTS, RECEPTACLE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 09140083131 |
|---|---|
| Color | Gray |
| Connector Type | Module without Contacts |
| Current Rating (Amps) | 5 A |
| Gender | Male |
| Housing Material | Polycarbonate (PC) |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions | 8 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Termination Style | Crimp |
| Voltage Rating | 50 V |
09140083 Series
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Gender | Connector Type | Voltage Rating | Current Rating (Amps) | Housing Material | Material Flammability Rating | Number of Positions | Color | Termination Style | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
HARTING Technology Group | 85 °C | -40 °C | Female | Module without Contacts | 50 V | 5 A | Polycarbonate (PC) | UL94 V-0 | 8 | Gray | Crimp | |
HARTING Technology Group | 85 °C | -40 °C | Male | Module without Contacts | 50 V | 5 A | Polycarbonate (PC) | UL94 V-0 | 8 | Gray | Crimp | |
HARTING Technology Group | 85 °C | -40 °C | Male | Module without Contacts | 50 V | 10 A | Polycarbonate (PC) | UL94 V-0 | 8 | Gray | Crimp | |
HARTING Technology Group | 85 °C | -40 °C | Female | Module without Contacts | 50 V | 7.5 A | Polycarbonate (PC) | UL94 V-0 | 8 | Gray | Crimp | |
HARTING Technology Group | 85 °C | -40 °C | Female | Module without Contacts | 50 V | 10 A | Polycarbonate (PC) | UL94 V-0 | 8 | Crimp | Han® D | |
HARTING Technology Group | 125 °C | -40 °C | Male | Module without Contacts | 400 V | 16 A | Polycarbonate (PC) | UL94 V-0 | 8 | Gray | Crimp | Han® |
HARTING Technology Group | 85 °C | -40 °C | Male | Module without Contacts | 50 V | 10 A | Polycarbonate (PC) | UL94 V-0 | 8 | Crimp | Han® D | |
HARTING Technology Group | 125 °C | -40 °C | Female | Module without Contacts | 400 V | 16 A | Polycarbonate (PC) | UL94 V-0 | 8 | Gray | Crimp | Han® |
HARTING Technology Group | 85 °C | -40 °C | Male | Module without Contacts | 50 V | 10 A | Polycarbonate (PC) | UL94 V-0 | 8 | Crimp | Han® D | |
HARTING Technology Group | 85 °C | -40 °C | Female | Module without Contacts | 50 V | 10 A | Polycarbonate (PC) | UL94 V-0 | 8 | Gray | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
09140083 Series
Male Module without Contacts Gray 8 Position Crimp
