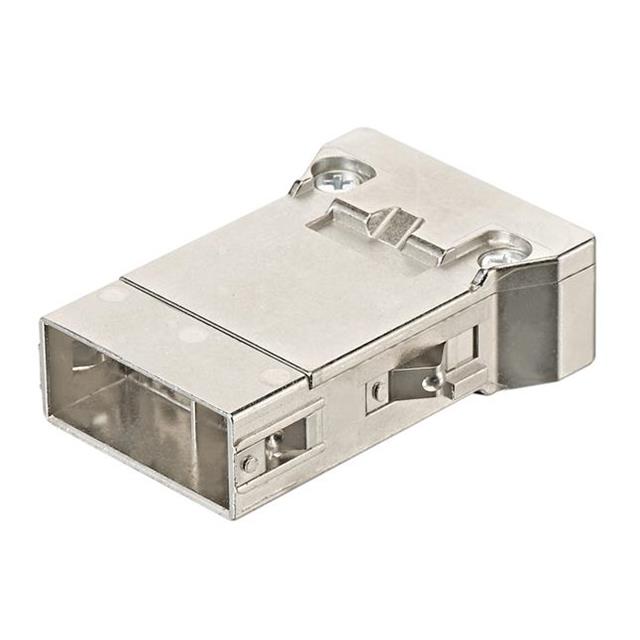

09140083017

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, HAN-MODULAR SERIES, INSERT, 8 CONTACTS, PLUG

Search across all available documentation for this part.

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, HAN-MODULAR SERIES, INSERT, 8 CONTACTS, PLUG

Technical Specifications

Parameters and characteristics for this part

Specification	09140083017

Connector Type	Module without Contacts
Contact Type	Han® D
Current Rating (Amps)	10 A
Gender	Male
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions	8
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Termination Style	Crimp
Voltage Rating	50 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Gender	Connector Type	Voltage Rating	Current Rating (Amps)	Housing Material	Material Flammability Rating	Number of Positions	Color	Termination Style	Contact Type
HARTING Technology Group 09140083132	85 °C	-40 °C	Female	Module without Contacts	50 V	5 A	Polycarbonate (PC)	UL94 V-0	8	Gray	Crimp
HARTING Technology Group 09140083131	85 °C	-40 °C	Male	Module without Contacts	50 V	5 A	Polycarbonate (PC)	UL94 V-0	8	Gray	Crimp
HARTING Technology Group 09140083042	85 °C	-40 °C	Male	Module without Contacts	50 V	10 A	Polycarbonate (PC)	UL94 V-0	8	Gray	Crimp
HARTING Technology Group 09140083141	85 °C	-40 °C	Female	Module without Contacts	50 V	7.5 A	Polycarbonate (PC)	UL94 V-0	8	Gray	Crimp
HARTING Technology Group 09140083117	85 °C	-40 °C	Female	Module without Contacts	50 V	10 A	Polycarbonate (PC)	UL94 V-0	8		Crimp	Han® D
HARTING Technology Group 09140083001	125 °C	-40 °C	Male	Module without Contacts	400 V	16 A	Polycarbonate (PC)	UL94 V-0	8	Gray	Crimp	Han®
HARTING Technology Group 09140083017	85 °C	-40 °C	Male	Module without Contacts	50 V	10 A	Polycarbonate (PC)	UL94 V-0	8		Crimp	Han® D
HARTING Technology Group 09140083101	125 °C	-40 °C	Female	Module without Contacts	400 V	16 A	Polycarbonate (PC)	UL94 V-0	8	Gray	Crimp	Han®
HARTING Technology Group 09140083021	85 °C	-40 °C	Male	Module without Contacts	50 V	10 A	Polycarbonate (PC)	UL94 V-0	8		Crimp	Han® D
HARTING Technology Group 09140083142	85 °C	-40 °C	Female	Module without Contacts	50 V	10 A	Polycarbonate (PC)	UL94 V-0	8	Gray	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Male Module without Contacts 8 (2x4) Position Crimp
