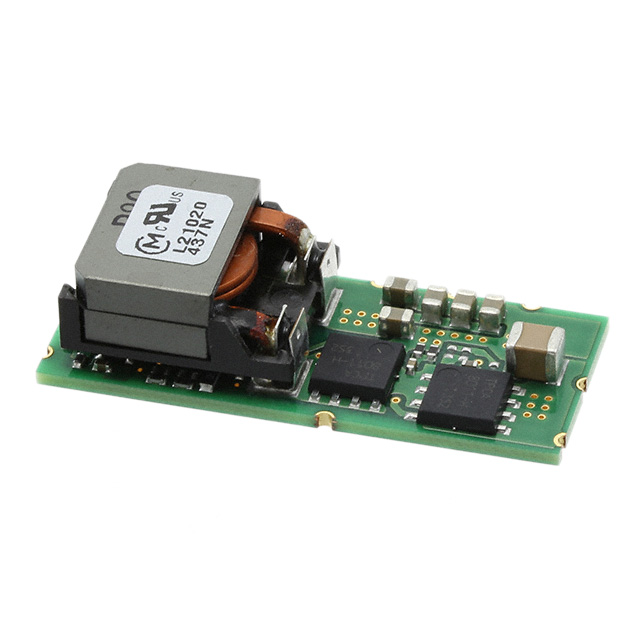

OKL2-T/20-W5P-C
ActiveMurata Power Solutions Inc.
NON ISOLATED POL DC/DC CONVERTER, OKAMI, ITE, 1 OUTPUT, 66 W, 20 A
Deep-Dive with AI
Search across all available documentation for this part.
OKL2-T/20-W5P-C
ActiveMurata Power Solutions Inc.
NON ISOLATED POL DC/DC CONVERTER, OKAMI, ITE, 1 OUTPUT, 66 W, 20 A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | OKL2-T/20-W5P-C |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active High, Enable |
| Current - Output (Max) [Max] | 20 A |
| Efficiency | 94 % |
| Features | OTP, UVLO, SCP, Remote On/Off, OCP |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 10-SMD Module |
| Power (Watts) | 73 W |
| Size / Dimension [x] | 0.8 " |
| Size / Dimension [x] | 20.3 mm |
| Size / Dimension [y] | 11.4 mm |
| Size / Dimension [y] | 0.45 in |
| Size / Dimension [z] | 8.5 mm |
| Size / Dimension [z] | 0.34 in |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 5.5 V |
| Voltage - Input (Min) [Min] | 2.4 V |
| Voltage - Output 1 [Max] | 3.63 V |
| Voltage - Output 1 [Min] | 0.6 V |
OKL2-T Series
| Part | Package / Case | Type | Number of Outputs | Voltage - Input (Min) [Min] | Control Features | Current - Output (Max) [Max] | Voltage - Output 1 [Max] | Voltage - Output 1 [Min] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input (Max) [Max] | Features | Applications | Efficiency | Mounting Type | Size / Dimension [z] | Size / Dimension [y] | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. | 12-SMD Module | Non-Isolated PoL Module | 1 | 2.4 V | Active Low Enable | 3 A | 3.63 V | 0.6 V | 0.48 in | 12.2 mm | 0.48 in | 6.1 mm | 12.2 mm | 0.24 " | 85 °C | -40 °C | 5.5 V | OCP OTP OVP Remote On/Off SCP UVLO | ITE (Commercial) | 95.3 % | Surface Mount | |||
Murata Power Solutions Inc. | 12-SMD Module | Non-Isolated PoL Module | 1 | 4.5 V | Active High Enable | 6 A | 5.5 V | 0.591 V | 0.48 in | 0.48 in | 12.2 mm | 0.28 " | 85 °C | -40 °C | 14 V | OCP Remote On/Off SCP UVLO | ITE (Commercial) | 93 % | Surface Mount | 7.1 mm | 12.2 mm | |||
Murata Power Solutions Inc. | 10-SMD Module | Non-Isolated PoL Module | 1 | 2.4 V | Active High Enable | 12 A | 3.63 V | 0.6 V | 0.8 " | 0.45 in | 20.3 mm | 0.34 in | 85 °C | -40 °C | 5.5 V | OCP OTP Remote On/Off SCP UVLO | ITE (Commercial) | 94 % | Surface Mount | 8.5 mm | 11.4 mm | 44 W | ||
Murata Power Solutions Inc. | 10-SMD Module | Non-Isolated PoL Module | 1 | 4.5 V | Active High Enable | 12 A | 5.5 V | 0.69 V | 0.8 " | 0.45 in | 20.3 mm | 0.34 in | 85 °C | -40 °C | 14 V | OCP OTP Remote On/Off SCP UVLO | ITE (Commercial) | 95 % | Surface Mount | 8.5 mm | 11.4 mm | |||
Murata Power Solutions Inc. | 10-SMD Module | Non-Isolated PoL Module | 1 | 4.5 V | Active High Enable | 20 A | 5.5 V | 0.69 V | 1.3 " | 0.53 in | 33 mm | 0.34 in | 85 °C | -40 °C | 14 V | OCP OTP Remote On/Off SCP UVLO | ITE (Commercial) | 94 % | Surface Mount | 8.6 mm | 13.5 mm | 110 W | ||
Murata Power Solutions Inc. | 10-SMD Module | Non-Isolated PoL Module | 1 | 4.5 V | Active Low Enable | 20 A | 5.5 V | 0.69 V | 1.3 " | 0.53 in | 33 mm | 0.34 in | 85 °C | -40 °C | 14 V | OCP OTP Remote On/Off SCP UVLO | ITE (Commercial) | 94 % | Surface Mount | 8.6 mm | 13.5 mm | 110 W | ||
Murata Power Solutions Inc. | 12-SMD Module | Non-Isolated PoL Module | 1 | 2.4 V | Active High Enable | 3 A | 3.63 V | 0.6 V | 0.48 in | 12.2 mm | 0.48 in | 6.1 mm | 12.2 mm | 0.24 " | 85 °C | -40 °C | 5.5 V | OCP OTP OVP Remote On/Off SCP UVLO | ITE (Commercial) | 95.3 % | Surface Mount | |||
Murata Power Solutions Inc. | 10-SMD Module | Non-Isolated PoL Module | 1 | 2.4 V | Active Low Enable | 12 A | 3.63 V | 0.6 V | 0.8 " | 0.45 in | 20.3 mm | 0.34 in | 85 °C | -40 °C | 5.5 V | OCP OTP Remote On/Off SCP UVLO | ITE (Commercial) | 94 % | Surface Mount | 8.5 mm | 11.4 mm | 44 W | ||
Murata Power Solutions Inc. | 12-SMD Module | Non-Isolated PoL Module | 1 | 4.5 V | Active Low Enable | 6 A | 5.5 V | 0.591 V | 0.48 in | 0.48 in | 12.2 mm | 0.28 " | 85 °C | -40 °C | 14 V | OCP Remote On/Off SCP UVLO | ITE (Commercial) | 93 % | Surface Mount | 7.1 mm | 12.2 mm | |||
Murata Power Solutions Inc. | 10-SMD Module | Non-Isolated PoL Module | 1 | 2.4 V | Active High Enable | 20 A | 3.63 V | 0.6 V | 0.8 " | 0.45 in | 20.3 mm | 0.34 in | 85 °C | -40 °C | 5.5 V | OCP OTP Remote On/Off SCP UVLO | ITE (Commercial) | 94 % | Surface Mount | 8.5 mm | 11.4 mm | 73 W |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
OKL2-T Series
NON ISOLATED POL DC/DC CONVERTER, OKAMI, ITE, 1 OUTPUT, 66 W, 20 A
