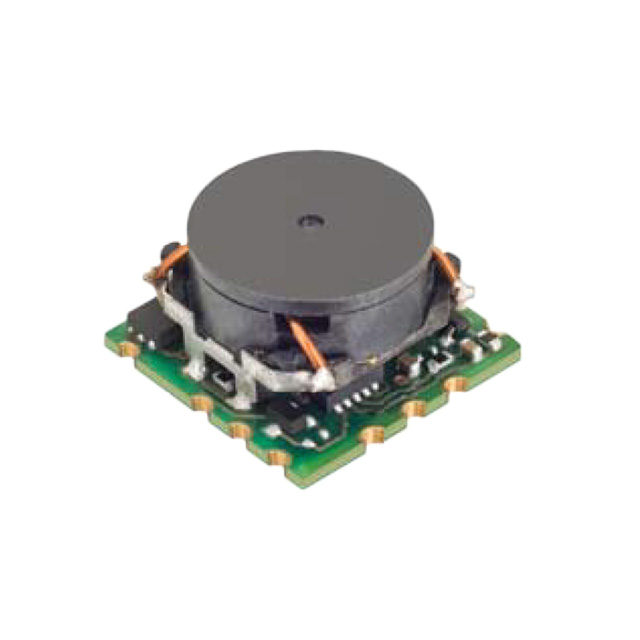

OKL2-T/6-W12P-C

Active

Murata Power Solutions Inc.

SMD-12P ISOLATED POWER MODULES ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

OKL2-T/6-W12P-C

Active

Murata Power Solutions Inc.

SMD-12P ISOLATED POWER MODULES ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	OKL2-T/6-W12P-C

Applications	ITE (Commercial)
Control Features	Active High, Enable
Current - Output (Max) [Max]	6 A
Efficiency	93 %
Features	UVLO, Remote On/Off, SCP, OCP
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	12-SMD Module
Size / Dimension [x]	12.2 mm
Size / Dimension [x]	0.48 in
Size / Dimension [y]	12.2 mm
Size / Dimension [y]	0.48 in
Size / Dimension [z]	7.1 mm
Size / Dimension [z]	0.28 "
Type	Non-Isolated PoL Module
Voltage - Input (Max) [Max]	14 V
Voltage - Input (Min) [Min]	4.5 V
Voltage - Output 1 [Max]	5.5 V
Voltage - Output 1 [Min]	0.591 V

OKL2-T Series

Part	Package / Case	Type	Number of Outputs	Voltage - Input (Min) [Min]	Control Features	Current - Output (Max) [Max]	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Max) [Max]	Features	Applications	Efficiency	Mounting Type	Size / Dimension [z]	Size / Dimension [y]	Power (Watts)
Murata Power Solutions Inc. OKL2-T/3-W5N-C	12-SMD Module	Non-Isolated PoL Module	1	2.4 V	Active Low Enable	3 A	3.63 V	0.6 V	0.48 in	12.2 mm	0.48 in	6.1 mm	12.2 mm	0.24 "	85 °C	-40 °C	5.5 V	OCP OTP OVP Remote On/Off SCP UVLO	ITE (Commercial)	95.3 %	Surface Mount
Murata Power Solutions Inc. OKL2-T/6-W12P-C	12-SMD Module	Non-Isolated PoL Module	1	4.5 V	Active High Enable	6 A	5.5 V	0.591 V	0.48 in		0.48 in		12.2 mm	0.28 "	85 °C	-40 °C	14 V	OCP Remote On/Off SCP UVLO	ITE (Commercial)	93 %	Surface Mount	7.1 mm	12.2 mm
Murata Power Solutions Inc. OKL2-T/12-W5P-C	10-SMD Module	Non-Isolated PoL Module	1	2.4 V	Active High Enable	12 A	3.63 V	0.6 V	0.8 "		0.45 in		20.3 mm	0.34 in	85 °C	-40 °C	5.5 V	OCP OTP Remote On/Off SCP UVLO	ITE (Commercial)	94 %	Surface Mount	8.5 mm	11.4 mm	44 W
Murata Power Solutions Inc. OKL2-T/12-W12P2-C	10-SMD Module	Non-Isolated PoL Module	1	4.5 V	Active High Enable	12 A	5.5 V	0.69 V	0.8 "		0.45 in		20.3 mm	0.34 in	85 °C	-40 °C	14 V	OCP OTP Remote On/Off SCP UVLO	ITE (Commercial)	95 %	Surface Mount	8.5 mm	11.4 mm
Murata Power Solutions Inc. OKL2-T/20-W12P2-C	10-SMD Module	Non-Isolated PoL Module	1	4.5 V	Active High Enable	20 A	5.5 V	0.69 V	1.3 "		0.53 in		33 mm	0.34 in	85 °C	-40 °C	14 V	OCP OTP Remote On/Off SCP UVLO	ITE (Commercial)	94 %	Surface Mount	8.6 mm	13.5 mm	110 W
Murata Power Solutions Inc. OKL2-T/20-W12N2-C	10-SMD Module	Non-Isolated PoL Module	1	4.5 V	Active Low Enable	20 A	5.5 V	0.69 V	1.3 "		0.53 in		33 mm	0.34 in	85 °C	-40 °C	14 V	OCP OTP Remote On/Off SCP UVLO	ITE (Commercial)	94 %	Surface Mount	8.6 mm	13.5 mm	110 W
Murata Power Solutions Inc. OKL2-T/3-W5P-C	12-SMD Module	Non-Isolated PoL Module	1	2.4 V	Active High Enable	3 A	3.63 V	0.6 V	0.48 in	12.2 mm	0.48 in	6.1 mm	12.2 mm	0.24 "	85 °C	-40 °C	5.5 V	OCP OTP OVP Remote On/Off SCP UVLO	ITE (Commercial)	95.3 %	Surface Mount
Murata Power Solutions Inc. OKL2-T/12-W5N-C	10-SMD Module	Non-Isolated PoL Module	1	2.4 V	Active Low Enable	12 A	3.63 V	0.6 V	0.8 "		0.45 in		20.3 mm	0.34 in	85 °C	-40 °C	5.5 V	OCP OTP Remote On/Off SCP UVLO	ITE (Commercial)	94 %	Surface Mount	8.5 mm	11.4 mm	44 W
Murata Power Solutions Inc. OKL2-T/6-W12N-C	12-SMD Module	Non-Isolated PoL Module	1	4.5 V	Active Low Enable	6 A	5.5 V	0.591 V	0.48 in		0.48 in		12.2 mm	0.28 "	85 °C	-40 °C	14 V	OCP Remote On/Off SCP UVLO	ITE (Commercial)	93 %	Surface Mount	7.1 mm	12.2 mm
Murata Power Solutions Inc. OKL2-T/20-W5P-C	10-SMD Module	Non-Isolated PoL Module	1	2.4 V	Active High Enable	20 A	3.63 V	0.6 V	0.8 "		0.45 in		20.3 mm	0.34 in	85 °C	-40 °C	5.5 V	OCP OTP Remote On/Off SCP UVLO	ITE (Commercial)	94 %	Surface Mount	8.5 mm	11.4 mm	73 W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 7.58
		5	$ 7.47
		10	$ 7.36
		25	$ 7.15
		50	$ 6.93
		100	$ 6.71
	Digi-Reel®	1	$ 7.58
		5	$ 7.47
		10	$ 7.36
		25	$ 7.15
		50	$ 6.93
		100	$ 6.71
	Tape & Reel (TR)	400	$ 6.50
		800	$ 6.06
LCSC	N/A	1	$ 0.00
Newark	Each	250	$ 6.14

Description

General part information

OKL2-T Series

SMD-12P ISOLATED POWER MODULES ROHS

Documents

Technical documentation and resources
