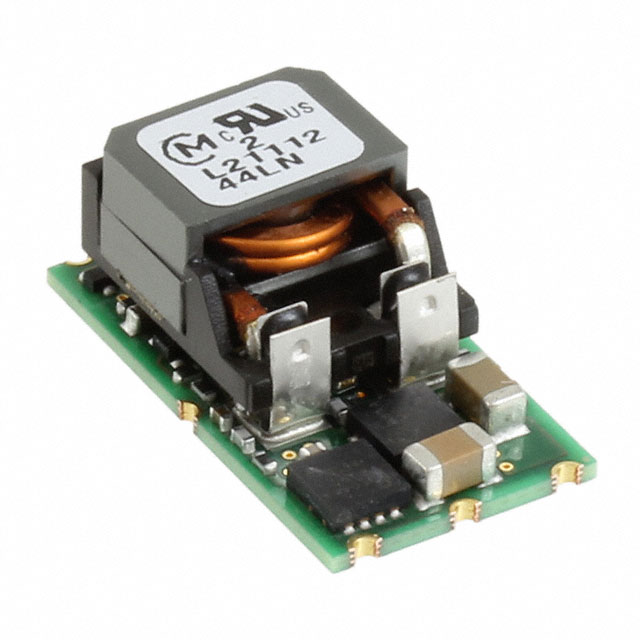

OKL2-T/12-W12P2-C

Active

Murata Power Solutions Inc.

NON ISOLATED POL DC/DC CONVERTER, OKAMI, ITE, 1 OUTPUT, 60 W, 12 A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN

OKL2-T/12-W12P2-C

Active

Murata Power Solutions Inc.

NON ISOLATED POL DC/DC CONVERTER, OKAMI, ITE, 1 OUTPUT, 60 W, 12 A

Deep-Dive with AI

DocumentsTechnical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	OKL2-T/12-W12P2-C

Applications	ITE (Commercial)
Control Features	Active High, Enable
Current - Output (Max) [Max]	12 A
Efficiency	95 %
Features	OTP, UVLO, SCP, Remote On/Off, OCP
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	10-SMD Module
Size / Dimension [x]	0.8 "
Size / Dimension [x]	20.3 mm
Size / Dimension [y]	11.4 mm
Size / Dimension [y]	0.45 in
Size / Dimension [z]	8.5 mm
Size / Dimension [z]	0.34 in
Type	Non-Isolated PoL Module
Voltage - Input (Max) [Max]	14 V
Voltage - Input (Min) [Min]	4.5 V
Voltage - Output 1 [Max]	5.5 V
Voltage - Output 1 [Min]	0.69 V

OKL2-T Series

Part	Package / Case	Type	Number of Outputs	Voltage - Input (Min) [Min]	Control Features	Current - Output (Max) [Max]	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Max) [Max]	Features	Applications	Efficiency	Mounting Type	Size / Dimension [z]	Size / Dimension [y]	Power (Watts)
Murata Power Solutions Inc. OKL2-T/3-W5N-C	12-SMD Module	Non-Isolated PoL Module	1	2.4 V	Active Low Enable	3 A	3.63 V	0.6 V	0.48 in	12.2 mm	0.48 in	6.1 mm	12.2 mm	0.24 "	85 °C	-40 °C	5.5 V	OCP OTP OVP Remote On/Off SCP UVLO	ITE (Commercial)	95.3 %	Surface Mount
Murata Power Solutions Inc. OKL2-T/6-W12P-C	12-SMD Module	Non-Isolated PoL Module	1	4.5 V	Active High Enable	6 A	5.5 V	0.591 V	0.48 in		0.48 in		12.2 mm	0.28 "	85 °C	-40 °C	14 V	OCP Remote On/Off SCP UVLO	ITE (Commercial)	93 %	Surface Mount	7.1 mm	12.2 mm
Murata Power Solutions Inc. OKL2-T/12-W5P-C	10-SMD Module	Non-Isolated PoL Module	1	2.4 V	Active High Enable	12 A	3.63 V	0.6 V	0.8 "		0.45 in		20.3 mm	0.34 in	85 °C	-40 °C	5.5 V	OCP OTP Remote On/Off SCP UVLO	ITE (Commercial)	94 %	Surface Mount	8.5 mm	11.4 mm	44 W
Murata Power Solutions Inc. OKL2-T/12-W12P2-C	10-SMD Module	Non-Isolated PoL Module	1	4.5 V	Active High Enable	12 A	5.5 V	0.69 V	0.8 "		0.45 in		20.3 mm	0.34 in	85 °C	-40 °C	14 V	OCP OTP Remote On/Off SCP UVLO	ITE (Commercial)	95 %	Surface Mount	8.5 mm	11.4 mm
Murata Power Solutions Inc. OKL2-T/20-W12P2-C	10-SMD Module	Non-Isolated PoL Module	1	4.5 V	Active High Enable	20 A	5.5 V	0.69 V	1.3 "		0.53 in		33 mm	0.34 in	85 °C	-40 °C	14 V	OCP OTP Remote On/Off SCP UVLO	ITE (Commercial)	94 %	Surface Mount	8.6 mm	13.5 mm	110 W
Murata Power Solutions Inc. OKL2-T/20-W12N2-C	10-SMD Module	Non-Isolated PoL Module	1	4.5 V	Active Low Enable	20 A	5.5 V	0.69 V	1.3 "		0.53 in		33 mm	0.34 in	85 °C	-40 °C	14 V	OCP OTP Remote On/Off SCP UVLO	ITE (Commercial)	94 %	Surface Mount	8.6 mm	13.5 mm	110 W
Murata Power Solutions Inc. OKL2-T/3-W5P-C	12-SMD Module	Non-Isolated PoL Module	1	2.4 V	Active High Enable	3 A	3.63 V	0.6 V	0.48 in	12.2 mm	0.48 in	6.1 mm	12.2 mm	0.24 "	85 °C	-40 °C	5.5 V	OCP OTP OVP Remote On/Off SCP UVLO	ITE (Commercial)	95.3 %	Surface Mount
Murata Power Solutions Inc. OKL2-T/12-W5N-C	10-SMD Module	Non-Isolated PoL Module	1	2.4 V	Active Low Enable	12 A	3.63 V	0.6 V	0.8 "		0.45 in		20.3 mm	0.34 in	85 °C	-40 °C	5.5 V	OCP OTP Remote On/Off SCP UVLO	ITE (Commercial)	94 %	Surface Mount	8.5 mm	11.4 mm	44 W
Murata Power Solutions Inc. OKL2-T/6-W12N-C	12-SMD Module	Non-Isolated PoL Module	1	4.5 V	Active Low Enable	6 A	5.5 V	0.591 V	0.48 in		0.48 in		12.2 mm	0.28 "	85 °C	-40 °C	14 V	OCP Remote On/Off SCP UVLO	ITE (Commercial)	93 %	Surface Mount	7.1 mm	12.2 mm
Murata Power Solutions Inc. OKL2-T/20-W5P-C	10-SMD Module	Non-Isolated PoL Module	1	2.4 V	Active High Enable	20 A	3.63 V	0.6 V	0.8 "		0.45 in		20.3 mm	0.34 in	85 °C	-40 °C	5.5 V	OCP OTP Remote On/Off SCP UVLO	ITE (Commercial)	94 %	Surface Mount	8.5 mm	11.4 mm	73 W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 10.65
		5	$ 10.57
		10	$ 10.49
		25	$ 10.33
		50	$ 10.01
		100	$ 9.04
	Digi-Reel®	1	$ 10.65
		5	$ 10.57
		10	$ 10.49
		25	$ 10.33
		50	$ 10.01
		100	$ 9.04
	Tape & Reel (TR)	250	$ 7.99
Newark	Each (Supplied on Full Reel)	1	$ 9.02
		1000	$ 8.95
		2000	$ 8.63
		4000	$ 8.25
		6000	$ 7.74

Description

General part information

OKL2-T Series

Non-Isolated PoL Module DC DC Converter 1 Output 0.69 ~ 5.5V 12A 4.5V - 14V Input

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet
