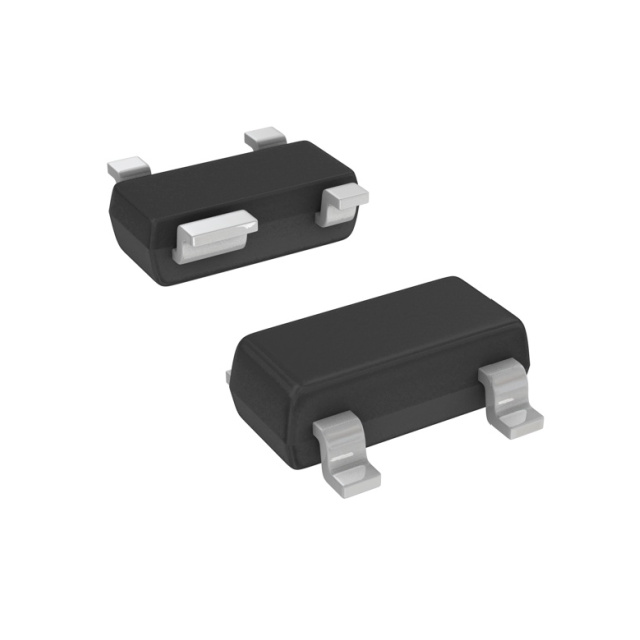

ESDALD05UJ2X
ActiveWeEn Semiconductors Co., Ltd
THE ESDALD05UJ2 IS A LOW CAPACIT
Deep-Dive with AI
Search across all available documentation for this part.
ESDALD05UJ2X
ActiveWeEn Semiconductors Co., Ltd
THE ESDALD05UJ2 IS A LOW CAPACIT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ESDALD05UJ2X |
|---|---|
| Applications | USB |
| Capacitance @ Frequency | 1.35 pF |
| Current - Peak Pulse (10/1000µs) | 8 A |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | TO-253-4, TO-253AA |
| Power Line Protection | True |
| Supplier Device Package | SOT-143 |
| Type | Steering |
| Unidirectional Channels | 2 |
| Voltage - Breakdown (Min) [Min] | 6 V |
| Voltage - Clamping (Max) @ Ipp [Max] | 17 V |
| Voltage - Reverse Standoff (Typ) | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.48 | |
| 10 | $ 0.29 | |||
| 100 | $ 0.19 | |||
| 500 | $ 0.14 | |||
| 1000 | $ 0.12 | |||
| Digi-Reel® | 1 | $ 0.48 | ||
| 10 | $ 0.29 | |||
| 100 | $ 0.19 | |||
| 500 | $ 0.14 | |||
| 1000 | $ 0.12 | |||
| Tape & Reel (TR) | 3000 | $ 0.11 | ||
| 6000 | $ 0.10 | |||
| 9000 | $ 0.09 | |||
| 15000 | $ 0.08 | |||
| 21000 | $ 0.08 | |||
| 30000 | $ 0.08 | |||
| 75000 | $ 0.07 | |||
Description
General part information
ESDALD05 Series
17V Clamp 8A (8/20µs) Ipp Tvs Diode Surface Mount SOT-143
Documents
Technical documentation and resources
No documents available
