ESDALD05UG4X
ActiveWeEn Semiconductors Co., Ltd
THE ESDALD05UG4 IS A LOW CAPACIT
Deep-Dive with AI
Search across all available documentation for this part.

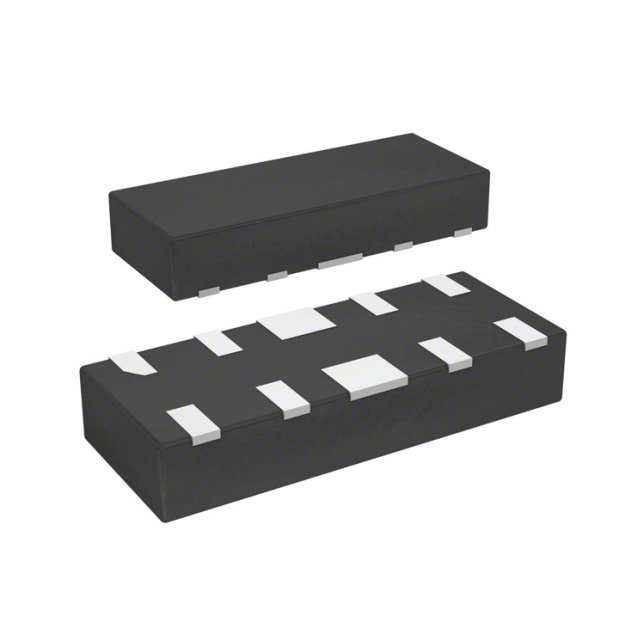

ESDALD05UG4X
ActiveWeEn Semiconductors Co., Ltd
THE ESDALD05UG4 IS A LOW CAPACIT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ESDALD05UG4X |
|---|---|
| Applications | USB, DVI, HDMI |
| Capacitance @ Frequency | 0.6 pF |
| Current - Peak Pulse (10/1000µs) | 4 A |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 10-UFDFN |
| Power - Peak Pulse | 60 W |
| Power Line Protection | False |
| Supplier Device Package | DFN2510 |
| Type | Steering |
| Unidirectional Channels [custom] | 4 |
| Voltage - Breakdown (Min) [Min] | 6 V |
| Voltage - Clamping (Max) @ Ipp [Max] | 15 V |
| Voltage - Reverse Standoff (Typ) | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.34 | |
| 10 | $ 0.21 | |||
| 100 | $ 0.13 | |||
| 500 | $ 0.10 | |||
| Digi-Reel® | 1 | $ 0.34 | ||
| 10 | $ 0.21 | |||
| 100 | $ 0.13 | |||
| 500 | $ 0.10 | |||
| Tape & Reel (TR) | 3000 | $ 0.07 | ||
| 6000 | $ 0.07 | |||
| 9000 | $ 0.06 | |||
| 15000 | $ 0.06 | |||
| 21000 | $ 0.05 | |||
| 30000 | $ 0.05 | |||
| 75000 | $ 0.05 | |||
| 150000 | $ 0.04 | |||
Description
General part information
ESDALD05 Series
15V Clamp 4A (8/20µs) Ipp Tvs Diode Surface Mount DFN2510
