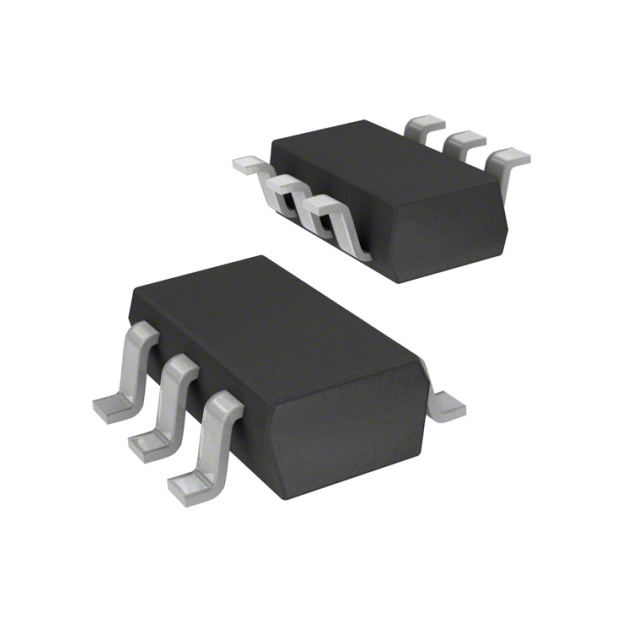

ESDALD05UD4X
ActiveWeEn Semiconductors Co., Ltd
THE ESDALD05UD4 IS DESIGNED TO P
Deep-Dive with AI
Search across all available documentation for this part.
ESDALD05UD4X
ActiveWeEn Semiconductors Co., Ltd
THE ESDALD05UD4 IS DESIGNED TO P
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ESDALD05UD4X |
|---|---|
| Applications | USB, DVI |
| Capacitance @ Frequency | 0.6 pF |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | SOT-23-6 |
| Power - Peak Pulse | 88 W |
| Power Line Protection | True |
| Supplier Device Package | SOT-23-6L |
| Type | Steering |
| Unidirectional Channels [custom] | 4 |
| Voltage - Breakdown (Min) [Min] | 6 V |
| Voltage - Clamping (Max) @ Ipp [Max] | 16 V |
| Voltage - Reverse Standoff (Typ) | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.36 | |
| 10 | $ 0.25 | |||
| 100 | $ 0.13 | |||
| 500 | $ 0.10 | |||
| 1000 | $ 0.08 | |||
| Digi-Reel® | 1 | $ 0.36 | ||
| 10 | $ 0.25 | |||
| 100 | $ 0.13 | |||
| 500 | $ 0.10 | |||
| 1000 | $ 0.08 | |||
| Tape & Reel (TR) | 3000 | $ 0.06 | ||
| 6000 | $ 0.06 | |||
| 9000 | $ 0.05 | |||
| 30000 | $ 0.05 | |||
| 75000 | $ 0.04 | |||
| 150000 | $ 0.04 | |||
Description
General part information
ESDALD05 Series
16V Clamp 5.5A (8/20µs) Ipp Tvs Diode Surface Mount SOT-23-6L
