19370031755

Active

HARTING Technology Group

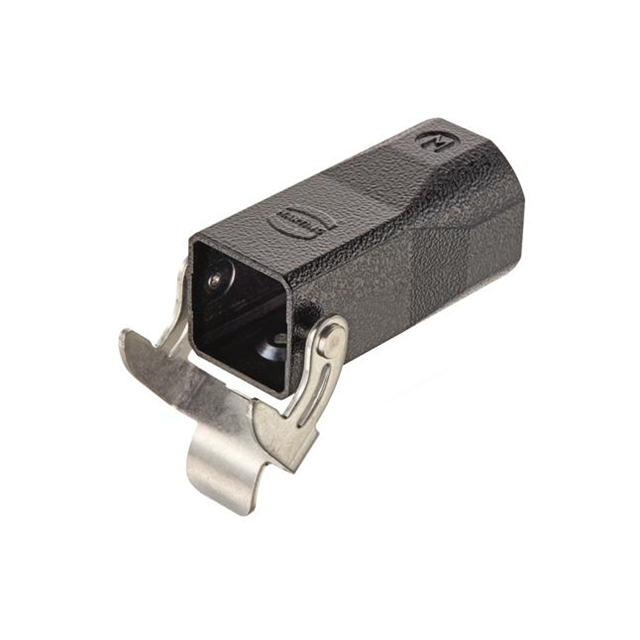

3A MARINE HOOD CABLE TO CABLE, M25

Search across all available documentation for this part.

Active

HARTING Technology Group

3A MARINE HOOD CABLE TO CABLE, M25

Technical Specifications

Parameters and characteristics for this part

Part	Lock Location	Housing Color	Thread Size	Size	Ingress Protection	Style	Connector Type	Housing Finish	Size / Dimension	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material	Features
HARTING Technology Group 19370031445	Locking Clip (1) on Base Bottom	Black	M25	3 A	IP44	Top Entry	Hood	Powder Coated	27 mm 28 mm 59.8 mm	1.102 in	2.354 in	1.063 in	125 °C	-40 °C	Zinc Die Cast
HARTING Technology Group 19370031447	Locking Clip (1) on Base Bottom	Black	M25	3 A	IP65 IP67	Top Entry	Hood	Powder Coated	27 mm 28 mm 59.8 mm	1.102 in	2.354 in	1.063 in	125 °C	-40 °C	Zinc Die Cast
HARTING Technology Group 19370031165	Locking Clip (1) on Base Bottom	Black		3 A	IP44	Side Entry	Base - Panel Mount 90° Bulkhead	Powder Coated					125 °C	-40 °C	Zinc Die Cast
HARTING Technology Group 19370031755	Locking Clip (1) on Hood	Black	M25	3 A	IP65 IP67		Hood/Housing - Coupling	Powder Coated					125 °C	-40 °C	Zinc Die Cast	Cable to Cable
HARTING Technology Group 19370031252	Locking Clip (1) on Base Bottom	Black	M20	3 A	IP44	Side Entry	Base - Panel Mount 90°	Powder Coated					125 °C	-40 °C	Zinc Die Cast

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood/Housing - Coupling Connector M25 3A IP65/IP67 - Dust Tight, Water Resistant, Waterproof
