19370031252
ActiveHARTING Technology Group

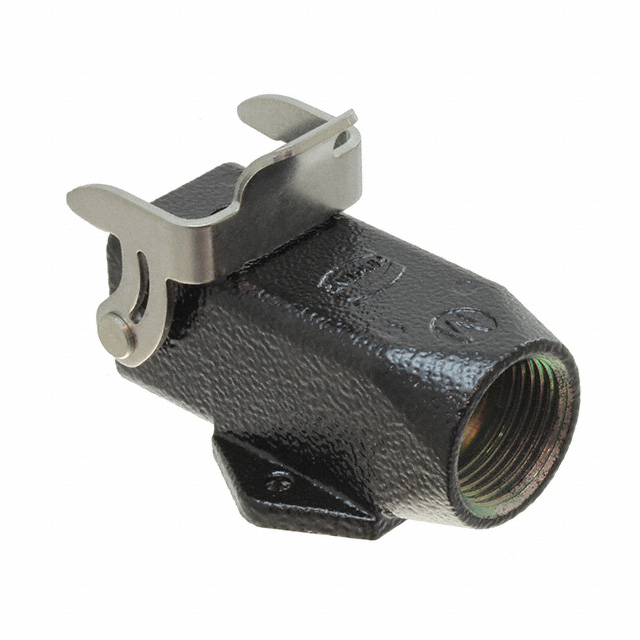

3A MARINE SURFACE MOUNT HOUSING BOTTOM CLOSED, M20
Deep-Dive with AI
Search across all available documentation for this part.
19370031252
ActiveHARTING Technology Group
3A MARINE SURFACE MOUNT HOUSING BOTTOM CLOSED, M20
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 19370031252 |
|---|---|
| Connector Type | Base - Panel Mount 90° |
| Housing Color | Black |
| Housing Finish | Powder Coated |
| Housing Material | Zinc, Die Cast |
| Ingress Protection | IP44 |
| Lock Location | Locking Clip (1) on Base Bottom |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Size | 3 A |
| Style | Side Entry |
| Thread Size | M20 |
19370031 Series
| Part | Lock Location | Housing Color | Thread Size | Size | Ingress Protection | Style | Connector Type | Housing Finish | Size / Dimension | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Operating Temperature [Max] | Operating Temperature [Min] | Housing Material | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
HARTING Technology Group | Locking Clip (1) on Base Bottom | Black | M25 | 3 A | IP44 | Top Entry | Hood | Powder Coated | 27 mm 28 mm 59.8 mm | 1.102 in | 2.354 in | 1.063 in | 125 °C | -40 °C | Zinc Die Cast | |
HARTING Technology Group | Locking Clip (1) on Base Bottom | Black | M25 | 3 A | IP65 IP67 | Top Entry | Hood | Powder Coated | 27 mm 28 mm 59.8 mm | 1.102 in | 2.354 in | 1.063 in | 125 °C | -40 °C | Zinc Die Cast | |
HARTING Technology Group | Locking Clip (1) on Base Bottom | Black | 3 A | IP44 | Side Entry | Base - Panel Mount 90° Bulkhead | Powder Coated | 125 °C | -40 °C | Zinc Die Cast | ||||||
HARTING Technology Group | Locking Clip (1) on Hood | Black | M25 | 3 A | IP65 IP67 | Hood/Housing - Coupling | Powder Coated | 125 °C | -40 °C | Zinc Die Cast | Cable to Cable | |||||
HARTING Technology Group | Locking Clip (1) on Base Bottom | Black | M20 | 3 A | IP44 | Side Entry | Base - Panel Mount 90° | Powder Coated | 125 °C | -40 °C | Zinc Die Cast |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
19370031 Series
Base - Panel Mount 90° Connector Side Entry M20 3A IP44
