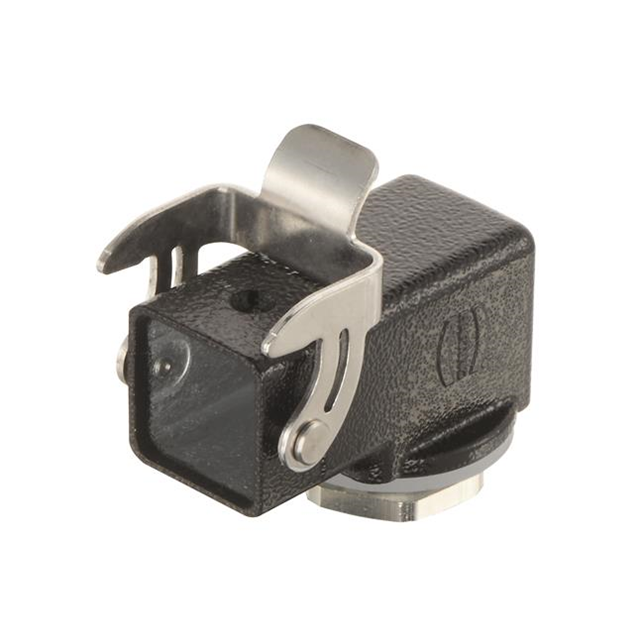

19370031165

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, BASE, PANEL MOUNT, ZINC ALLOY BODY, 1 LEVER, 3A

Search across all available documentation for this part.

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, BASE, PANEL MOUNT, ZINC ALLOY BODY, 1 LEVER, 3A

Technical Specifications

Parameters and characteristics for this part

Part	Lock Location	Housing Color	Thread Size	Size	Ingress Protection	Style	Connector Type	Housing Finish	Size / Dimension	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material	Features
HARTING Technology Group 19370031445	Locking Clip (1) on Base Bottom	Black	M25	3 A	IP44	Top Entry	Hood	Powder Coated	27 mm 28 mm 59.8 mm	1.102 in	2.354 in	1.063 in	125 °C	-40 °C	Zinc Die Cast
HARTING Technology Group 19370031447	Locking Clip (1) on Base Bottom	Black	M25	3 A	IP65 IP67	Top Entry	Hood	Powder Coated	27 mm 28 mm 59.8 mm	1.102 in	2.354 in	1.063 in	125 °C	-40 °C	Zinc Die Cast
HARTING Technology Group 19370031165	Locking Clip (1) on Base Bottom	Black		3 A	IP44	Side Entry	Base - Panel Mount 90° Bulkhead	Powder Coated					125 °C	-40 °C	Zinc Die Cast
HARTING Technology Group 19370031755	Locking Clip (1) on Hood	Black	M25	3 A	IP65 IP67		Hood/Housing - Coupling	Powder Coated					125 °C	-40 °C	Zinc Die Cast	Cable to Cable
HARTING Technology Group 19370031252	Locking Clip (1) on Base Bottom	Black	M20	3 A	IP44	Side Entry	Base - Panel Mount 90°	Powder Coated					125 °C	-40 °C	Zinc Die Cast

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 82.39
Newark	Each	10	$ 86.67

General part information

Base - Panel Mount 90°, Bulkhead Connector Side Entry 3A IP44
