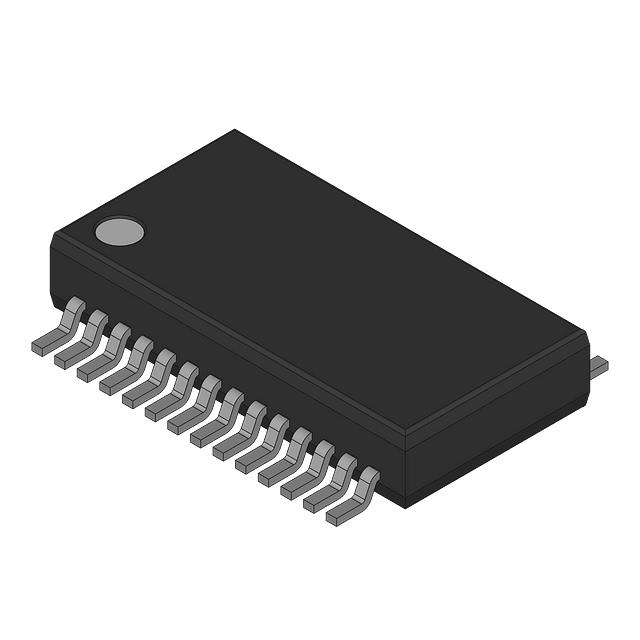

SN74ABT8646DL

Active

Texas Instruments

IC SCAN-TEST-DEV/XCVR 28-SSOP

Search across all available documentation for this part.

Active

Texas Instruments

IC SCAN-TEST-DEV/XCVR 28-SSOP

Technical Specifications

Parameters and characteristics for this part

Specification	SN74ABT8646DL

Logic Type	Scan Test Device with Bus Transceiver and Registers
Mounting Type	Surface Mount
Number of Bits	8
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	28-BSSOP
Package / Case [custom]	7.5 mm
Package / Case [custom]	0.295 in
Supplier Device Package	28-BSSOP
Supply Voltage [Max]	5.5 V
Supply Voltage [Min]	4.5 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Package / Case [custom]	Package / Case [custom]	Package / Case	Logic Type	Supply Voltage [Min]	Supply Voltage [Max]	Number of Bits	Mounting Type	Package / Case [x]	Package / Case [y]
Texas Instruments SN74ABT8646DL	85 °C	-40 °C	28-BSSOP	7.5 mm	0.295 in	28-BSSOP	Scan Test Device with Bus Transceiver and Registers	4.5 V	5.5 V	8	Surface Mount
Texas Instruments SN74ABT8646DWRG4	85 °C	-40 °C	28-SOIC			28-SOIC	Scan Test Device with Bus Transceiver and Registers	4.5 V	5.5 V	8	Surface Mount	0.295 in	7.5 mm
Texas Instruments SN74ABT8646DLR	85 °C	-40 °C	28-BSSOP	7.5 mm	0.295 in	28-BSSOP	Scan Test Device with Bus Transceiver and Registers	4.5 V	5.5 V	8	Surface Mount
Texas Instruments SN74ABT8646DWR	85 °C	-40 °C	28-SOIC			28-SOIC	Scan Test Device with Bus Transceiver and Registers	4.5 V	5.5 V	8	Surface Mount	0.295 in	7.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Scan Test Device with Bus Transceiver and Registers IC 28-BSSOP
