Technical Specifications
Parameters and characteristics for this part

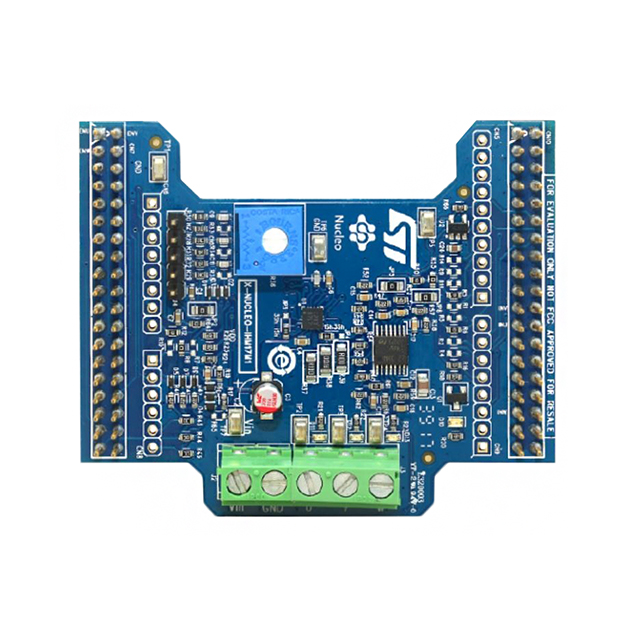

| Specification | X-NUCLEO-IHM17M1 |
|---|---|
| Contents | Board(s) |
| Function | Motor Controller/Driver |
| Platform | Nucleo |
| Type | Power Management |
| Utilized IC / Part | STSPIN233 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
X-NUCLEO-IHM11M1 Series
The X-NUCLEO-NFC02A1 is a dynamic NFC/RFID tag board based on M24LR04E-R, for expansion of STM32 Nucleo boards.
The M24LR04E-R is an NFC Type V/RFID tag IC with a dual-interface 4 Kbit Electrically Erasable Programmable Read-Only Memory (EEPROM) that also features an I2C interface.
The EEPROM is organized as 512 x 8 bit in the I2C mode and as 128 x 32 bit in RF mode. It can be operated either from an external power supply or directly powered by the received carrier electromagnetic field.
