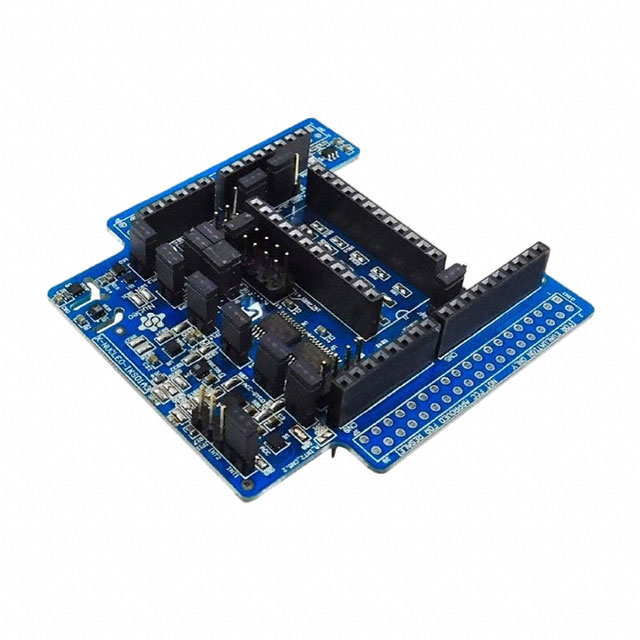

X-NUCLEO-IKS01A3
ObsoleteMOTION MEMS AND ENVIRONMENTAL SENSOR EXPANSION BOARD FOR STM32 NUCLEO
Deep-Dive with AI
Search across all available documentation for this part.
X-NUCLEO-IKS01A3
ObsoleteMOTION MEMS AND ENVIRONMENTAL SENSOR EXPANSION BOARD FOR STM32 NUCLEO
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | X-NUCLEO-IKS01A3 |
|---|---|
| Contents | Board(s) |
| Function | Magnetometer, Gyroscope, Pressure, Humidity, Accelerometer, Temperature |
| Interconnect System | DIL24, Arduino R3 Shield |
| Platform | Nucleo |
| Type | Sensor |
| Utilized IC / Part | HTS221, STTS751, LIS2MDL, LPS22HH, LSM6DO, LIS2DW12 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
X-NUCLEO-IHM11M1 Series
The X-NUCLEO-NFC02A1 is a dynamic NFC/RFID tag board based on M24LR04E-R, for expansion of STM32 Nucleo boards.
The M24LR04E-R is an NFC Type V/RFID tag IC with a dual-interface 4 Kbit Electrically Erasable Programmable Read-Only Memory (EEPROM) that also features an I2C interface.
The EEPROM is organized as 512 x 8 bit in the I2C mode and as 128 x 32 bit in RF mode. It can be operated either from an external power supply or directly powered by the received carrier electromagnetic field.
Documents
Technical documentation and resources
