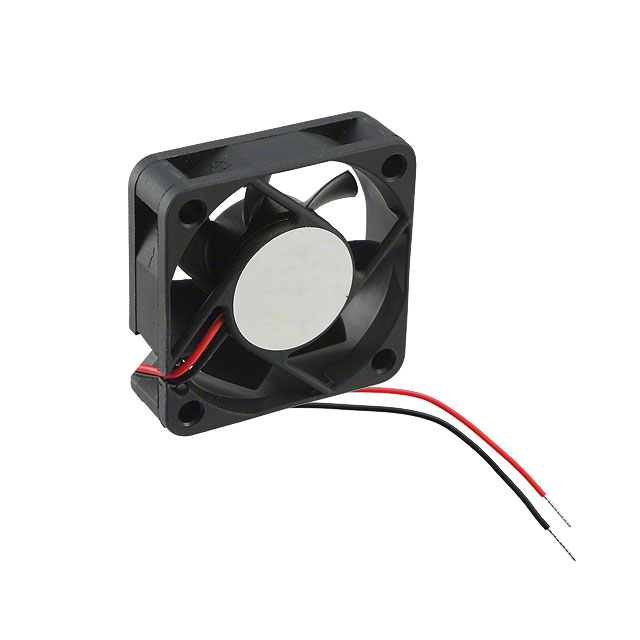

AFB0512HB

Obsolete

Delta Electronics

FAN AXIAL 50X15MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFans, Blowers CSA Cert Fans VDE Cert +2

AFB0512HB

Obsolete

Delta Electronics

FAN AXIAL 50X15MM 12VDC WIRE

Deep-Dive with AI

DocumentsFans, Blowers CSA Cert Fans VDE Cert +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AFB0512HB

Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Current Rating (Amps)	100 mA
Fan Type	Tubeaxial
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	32 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	1.2 W
RPM	5600 RPM
Size / Dimension [x]	50 mm
Size / Dimension [z]	50 mm
Static Pressure	59.8 Pa
Static Pressure	0.24 in H2O
Termination	2 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.8 VDC
Voltage Range [Min]	7 V
Weight	0.071 lb
Weight	32.21 g
Width [x]	15 mm

AFB0512 Series

Part	Air Flow	Air Flow	Power (Watts)	Voltage Range [Min]	Voltage Range [Max]	Noise	Approval Agency	Lifetime @ Temp.	Width [x]	Fan Type	Material - Frame	Material - Blade	Bearing Type	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Termination	Size / Dimension [z]	Size / Dimension [x]	RPM	Weight	Weight	Static Pressure	Static Pressure	Voltage - Rated	Width [y]	Current Rating (Amps)	Features
Delta Electronics AFB0512HHB	16.2 CFM	0.454 m³/min	1.56 W	7 V	13.8 VDC	36 dB	CE CSA UL VDE	70000 Hrs	15 mm	Tubeaxial	Plastic	Plastic	Ball	70 °C	70 °C	-10 °C	-10 °C	2 Wire Leads	50 mm	50 mm	6400 RPM	0.071 lb	32.21 g	0.315 in H2O	78.5 Pa	12 VDC
Delta Electronics AFB0512HD	15.8 CFM	0.442 m³/min	1.2 W	7 V	13.8 VDC	33 dB(A)	CE CSA UL VDE	70000 Hrs		Tubeaxial	Plastic	Plastic	Ball	70 °C	70 °C	-10 °C	-10 °C	2 Wire Leads	50 mm	50 mm	5600 RPM	0.085 lb	38.56 g	0.182 in H2O	45.3 Pa	12 VDC	20 mm	100 mA
Delta Electronics AFB0512LB-F00	9.9 CFM	0.277 m³/min	720 mW	7 V	13.8 VDC	24 dB	CE CSA UL VDE	70000 Hrs	15 mm	Tubeaxial	Plastic	Plastic	Ball	70 °C	70 °C	-10 °C	-10 °C	3 Wire Leads	50 mm	50 mm	4000 RPM	0.071 lb	32.21 g			12 VDC		60 mA	Locked Rotor Protection Speed Sensor (Tach)
Delta Electronics AFB0512VHD-F00	20.3 CFM	0.568 mł/min	1.92 W	7 V	13.8 VDC	40.5 dB(A)	CE CSA UL VDE	70000 Hrs		Tubeaxial	Plastic	Plastic	Ball	70 °C	70 °C	-10 °C	-10 °C	3 Wire Leads	50 mm	50 mm	7000 RPM	0.085 lb	38.56 g	0.303 in H2O	75.5 Pa	12 VDC	20 mm		Locked Rotor Protection Speed Sensor (Tach)
Delta Electronics AFB0512LD			720 mW	7 V	13.8 VDC	25 dB(A)	CE CSA UL VDE	70000 Hrs		Tubeaxial	Plastic	Plastic	Ball	70 °C	70 °C	-10 °C	-10 °C	2 Wire Leads	50 mm	50 mm	4000 RPM	0.085 lb	38.56 g	0.095 in H2O	23.7 Pa	12 VDC	20 mm	60 mA
Delta Electronics AFB0512LD-R00			720 mW	7 V	13.8 VDC	25 dB(A)	CE CSA UL VDE	70000 Hrs		Tubeaxial	Plastic	Plastic	Ball	70 °C	70 °C	-10 °C	-10 °C	3 Wire Leads	50 mm	50 mm	4000 RPM	0.085 lb	38.56 g	0.095 in H2O	23.7 Pa	12 VDC	20 mm	60 mA	Locked Rotor Sensor
Delta Electronics AFB0512HHB-F00	16.2 CFM	0.454 m³/min	1.56 W	7 V	13.8 VDC	36 dB	CE CSA UL VDE	70000 Hrs	15 mm	Tubeaxial	Plastic	Plastic	Ball	70 °C	70 °C	-10 °C	-10 °C	3 Wire Leads	50 mm	50 mm	6400 RPM	0.071 lb	32.21 g	0.315 in H2O	78.5 Pa	12 VDC			Locked Rotor Protection Speed Sensor (Tach)
Delta Electronics AFB0512HHD-R00	18.3 CFM	0.512 m³/min	1.68 W	7 V	13.8 VDC	37 dB	CE CSA UL VDE	70000 Hrs		Tubeaxial	Plastic	Plastic	Ball	70 °C	70 °C	-10 °C	-10 °C	3 Wire Leads	50 mm	50 mm	6400 RPM	0.085 lb	38.56 g	0.254 in H2O	63.3 Pa	12 VDC	20 mm	140 mA	Locked Rotor Sensor
Delta Electronics AFB0512HD-F00	15.8 CFM	0.442 m³/min	1.2 W	7 V	13.8 VDC	33 dB(A)	CE CSA UL VDE	70000 Hrs		Tubeaxial	Plastic	Plastic	Ball	70 °C	70 °C	-10 °C	-10 °C	3 Wire Leads	50 mm	50 mm	5600 RPM	0.085 lb	38.56 g	0.182 in H2O	45.3 Pa	12 VDC	20 mm	100 mA	Locked Rotor Protection Speed Sensor (Tach)
Delta Electronics AFB0512HB			1.2 W	7 V	13.8 VDC	32 dB	CE CSA UL VDE	70000 Hrs	15 mm	Tubeaxial	Plastic	Plastic	Ball	70 °C	70 °C	-10 °C	-10 °C	2 Wire Leads	50 mm	50 mm	5600 RPM	0.071 lb	32.21 g	0.24 in H2O	59.8 Pa	12 VDC		100 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 12.78
		10	$ 11.94
		25	$ 10.83
		50	$ 10.00
		100	$ 8.75
		336	$ 8.19
		672	$ 7.64

Description

General part information

AFB0512 Series

Fan Tubeaxial 12VDC Square - 50mm L x 50mm H Ball 14.1 CFM (0.395m³/min) 2 Wire Leads
