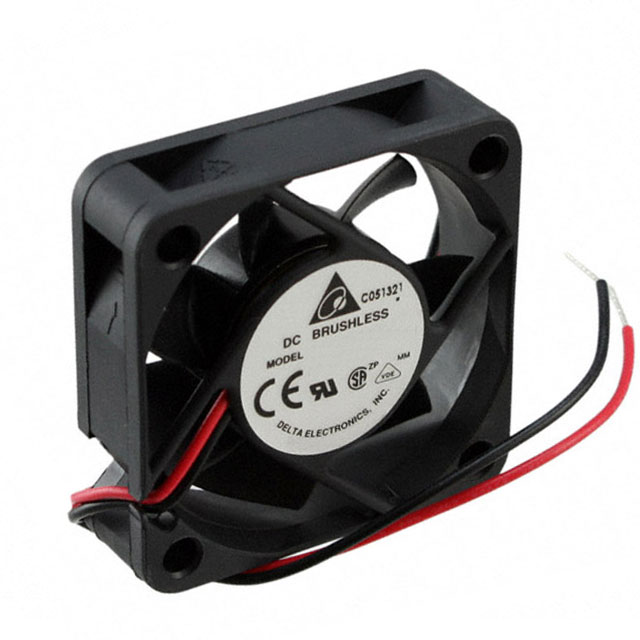

AFB0512HHB

Active

Delta Electronics

DC FAN AXIAL BALL BEARING 12V 7V TO 13.8V 16.24CFM 36DB 50 X 50 X 15MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Fans VDE Cert +2

AFB0512HHB

Active

Delta Electronics

DC FAN AXIAL BALL BEARING 12V 7V TO 13.8V 16.24CFM 36DB 50 X 50 X 15MM

Deep-Dive with AI

DocumentsDatasheet Fans VDE Cert +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AFB0512HHB

Air Flow	16.2 CFM
Air Flow	0.454 m³/min
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Fan Type	Tubeaxial
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	36 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	1.56 W
RPM	6400 RPM
Size / Dimension [x]	50 mm
Size / Dimension [z]	50 mm
Static Pressure	0.315 in H2O
Static Pressure	78.5 Pa
Termination	2 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.8 VDC
Voltage Range [Min]	7 V
Weight	0.071 lb
Weight	32.21 g
Width [x]	15 mm

AFB0512 Series

Part	Air Flow	Air Flow	Power (Watts)	Voltage Range [Min]	Voltage Range [Max]	Noise	Approval Agency	Lifetime @ Temp.	Width [x]	Fan Type	Material - Frame	Material - Blade	Bearing Type	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Termination	Size / Dimension [z]	Size / Dimension [x]	RPM	Weight	Weight	Static Pressure	Static Pressure	Voltage - Rated	Width [y]	Current Rating (Amps)	Features
Delta Electronics AFB0512HHB	16.2 CFM	0.454 m³/min	1.56 W	7 V	13.8 VDC	36 dB	CE CSA UL VDE	70000 Hrs	15 mm	Tubeaxial	Plastic	Plastic	Ball	70 °C	70 °C	-10 °C	-10 °C	2 Wire Leads	50 mm	50 mm	6400 RPM	0.071 lb	32.21 g	0.315 in H2O	78.5 Pa	12 VDC
Delta Electronics AFB0512HD	15.8 CFM	0.442 m³/min	1.2 W	7 V	13.8 VDC	33 dB(A)	CE CSA UL VDE	70000 Hrs		Tubeaxial	Plastic	Plastic	Ball	70 °C	70 °C	-10 °C	-10 °C	2 Wire Leads	50 mm	50 mm	5600 RPM	0.085 lb	38.56 g	0.182 in H2O	45.3 Pa	12 VDC	20 mm	100 mA
Delta Electronics AFB0512LB-F00	9.9 CFM	0.277 m³/min	720 mW	7 V	13.8 VDC	24 dB	CE CSA UL VDE	70000 Hrs	15 mm	Tubeaxial	Plastic	Plastic	Ball	70 °C	70 °C	-10 °C	-10 °C	3 Wire Leads	50 mm	50 mm	4000 RPM	0.071 lb	32.21 g			12 VDC		60 mA	Locked Rotor Protection Speed Sensor (Tach)
Delta Electronics AFB0512VHD-F00	20.3 CFM	0.568 mł/min	1.92 W	7 V	13.8 VDC	40.5 dB(A)	CE CSA UL VDE	70000 Hrs		Tubeaxial	Plastic	Plastic	Ball	70 °C	70 °C	-10 °C	-10 °C	3 Wire Leads	50 mm	50 mm	7000 RPM	0.085 lb	38.56 g	0.303 in H2O	75.5 Pa	12 VDC	20 mm		Locked Rotor Protection Speed Sensor (Tach)
Delta Electronics AFB0512LD			720 mW	7 V	13.8 VDC	25 dB(A)	CE CSA UL VDE	70000 Hrs		Tubeaxial	Plastic	Plastic	Ball	70 °C	70 °C	-10 °C	-10 °C	2 Wire Leads	50 mm	50 mm	4000 RPM	0.085 lb	38.56 g	0.095 in H2O	23.7 Pa	12 VDC	20 mm	60 mA
Delta Electronics AFB0512LD-R00			720 mW	7 V	13.8 VDC	25 dB(A)	CE CSA UL VDE	70000 Hrs		Tubeaxial	Plastic	Plastic	Ball	70 °C	70 °C	-10 °C	-10 °C	3 Wire Leads	50 mm	50 mm	4000 RPM	0.085 lb	38.56 g	0.095 in H2O	23.7 Pa	12 VDC	20 mm	60 mA	Locked Rotor Sensor
Delta Electronics AFB0512HHB-F00	16.2 CFM	0.454 m³/min	1.56 W	7 V	13.8 VDC	36 dB	CE CSA UL VDE	70000 Hrs	15 mm	Tubeaxial	Plastic	Plastic	Ball	70 °C	70 °C	-10 °C	-10 °C	3 Wire Leads	50 mm	50 mm	6400 RPM	0.071 lb	32.21 g	0.315 in H2O	78.5 Pa	12 VDC			Locked Rotor Protection Speed Sensor (Tach)
Delta Electronics AFB0512HHD-R00	18.3 CFM	0.512 m³/min	1.68 W	7 V	13.8 VDC	37 dB	CE CSA UL VDE	70000 Hrs		Tubeaxial	Plastic	Plastic	Ball	70 °C	70 °C	-10 °C	-10 °C	3 Wire Leads	50 mm	50 mm	6400 RPM	0.085 lb	38.56 g	0.254 in H2O	63.3 Pa	12 VDC	20 mm	140 mA	Locked Rotor Sensor
Delta Electronics AFB0512HD-F00	15.8 CFM	0.442 m³/min	1.2 W	7 V	13.8 VDC	33 dB(A)	CE CSA UL VDE	70000 Hrs		Tubeaxial	Plastic	Plastic	Ball	70 °C	70 °C	-10 °C	-10 °C	3 Wire Leads	50 mm	50 mm	5600 RPM	0.085 lb	38.56 g	0.182 in H2O	45.3 Pa	12 VDC	20 mm	100 mA	Locked Rotor Protection Speed Sensor (Tach)
Delta Electronics AFB0512HB			1.2 W	7 V	13.8 VDC	32 dB	CE CSA UL VDE	70000 Hrs	15 mm	Tubeaxial	Plastic	Plastic	Ball	70 °C	70 °C	-10 °C	-10 °C	2 Wire Leads	50 mm	50 mm	5600 RPM	0.071 lb	32.21 g	0.24 in H2O	59.8 Pa	12 VDC		100 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 13.80
		10	$ 12.90
		25	$ 11.70
		50	$ 10.80
		100	$ 9.45
		336	$ 8.85
		672	$ 8.25

Description

General part information

AFB0512 Series

Fan Tubeaxial 12VDC Square - 50mm L x 50mm H Ball 16.2 CFM (0.454m³/min) 2 Wire Leads
