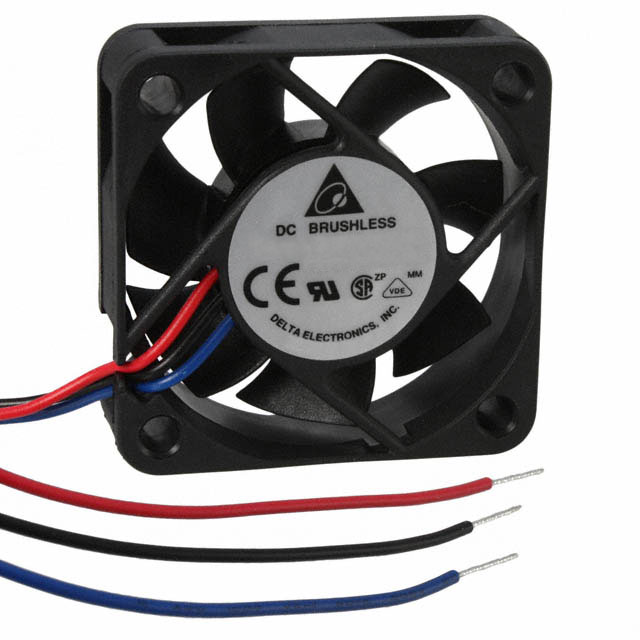

AFB0512HHB-F00
ActiveDelta Electronics
FAN AXIAL 50X15MM 12VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
AFB0512HHB-F00
ActiveDelta Electronics
FAN AXIAL 50X15MM 12VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AFB0512HHB-F00 |
|---|---|
| Air Flow | 16.2 CFM |
| Air Flow | 0.454 m³/min |
| Approval Agency | UL, CE, VDE, CSA |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Speed Sensor (Tach), Locked Rotor Protection |
| Lifetime @ Temp. | 70000 Hrs |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 36 dB |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 1.56 W |
| RPM | 6400 RPM |
| Size / Dimension [x] | 50 mm |
| Size / Dimension [z] | 50 mm |
| Static Pressure | 0.315 in H2O |
| Static Pressure | 78.5 Pa |
| Termination | 3 Wire Leads |
| Voltage - Rated | 12 VDC |
| Voltage Range [Max] | 13.8 VDC |
| Voltage Range [Min] | 7 V |
| Weight | 0.071 lb |
| Weight | 32.21 g |
| Width [x] | 15 mm |
AFB0512 Series
| Part | Air Flow | Air Flow | Power (Watts) | Voltage Range [Min] | Voltage Range [Max] | Noise | Approval Agency | Lifetime @ Temp. | Width [x] | Fan Type | Material - Frame | Material - Blade | Bearing Type | Operating Temperature [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Min] | Termination | Size / Dimension [z] | Size / Dimension [x] | RPM | Weight | Weight | Static Pressure | Static Pressure | Voltage - Rated | Width [y] | Current Rating (Amps) | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Delta Electronics | 16.2 CFM | 0.454 m³/min | 1.56 W | 7 V | 13.8 VDC | 36 dB | CE CSA UL VDE | 70000 Hrs | 15 mm | Tubeaxial | Plastic | Plastic | Ball | 70 °C | 70 °C | -10 °C | -10 °C | 2 Wire Leads | 50 mm | 50 mm | 6400 RPM | 0.071 lb | 32.21 g | 0.315 in H2O | 78.5 Pa | 12 VDC | |||
Delta Electronics | 15.8 CFM | 0.442 m³/min | 1.2 W | 7 V | 13.8 VDC | 33 dB(A) | CE CSA UL VDE | 70000 Hrs | Tubeaxial | Plastic | Plastic | Ball | 70 °C | 70 °C | -10 °C | -10 °C | 2 Wire Leads | 50 mm | 50 mm | 5600 RPM | 0.085 lb | 38.56 g | 0.182 in H2O | 45.3 Pa | 12 VDC | 20 mm | 100 mA | ||
Delta Electronics | 9.9 CFM | 0.277 m³/min | 720 mW | 7 V | 13.8 VDC | 24 dB | CE CSA UL VDE | 70000 Hrs | 15 mm | Tubeaxial | Plastic | Plastic | Ball | 70 °C | 70 °C | -10 °C | -10 °C | 3 Wire Leads | 50 mm | 50 mm | 4000 RPM | 0.071 lb | 32.21 g | 12 VDC | 60 mA | Locked Rotor Protection Speed Sensor (Tach) | |||
Delta Electronics | 20.3 CFM | 0.568 mł/min | 1.92 W | 7 V | 13.8 VDC | 40.5 dB(A) | CE CSA UL VDE | 70000 Hrs | Tubeaxial | Plastic | Plastic | Ball | 70 °C | 70 °C | -10 °C | -10 °C | 3 Wire Leads | 50 mm | 50 mm | 7000 RPM | 0.085 lb | 38.56 g | 0.303 in H2O | 75.5 Pa | 12 VDC | 20 mm | Locked Rotor Protection Speed Sensor (Tach) | ||
Delta Electronics | 720 mW | 7 V | 13.8 VDC | 25 dB(A) | CE CSA UL VDE | 70000 Hrs | Tubeaxial | Plastic | Plastic | Ball | 70 °C | 70 °C | -10 °C | -10 °C | 2 Wire Leads | 50 mm | 50 mm | 4000 RPM | 0.085 lb | 38.56 g | 0.095 in H2O | 23.7 Pa | 12 VDC | 20 mm | 60 mA | ||||
Delta Electronics | 720 mW | 7 V | 13.8 VDC | 25 dB(A) | CE CSA UL VDE | 70000 Hrs | Tubeaxial | Plastic | Plastic | Ball | 70 °C | 70 °C | -10 °C | -10 °C | 3 Wire Leads | 50 mm | 50 mm | 4000 RPM | 0.085 lb | 38.56 g | 0.095 in H2O | 23.7 Pa | 12 VDC | 20 mm | 60 mA | Locked Rotor Sensor | |||
Delta Electronics | 16.2 CFM | 0.454 m³/min | 1.56 W | 7 V | 13.8 VDC | 36 dB | CE CSA UL VDE | 70000 Hrs | 15 mm | Tubeaxial | Plastic | Plastic | Ball | 70 °C | 70 °C | -10 °C | -10 °C | 3 Wire Leads | 50 mm | 50 mm | 6400 RPM | 0.071 lb | 32.21 g | 0.315 in H2O | 78.5 Pa | 12 VDC | Locked Rotor Protection Speed Sensor (Tach) | ||
Delta Electronics | 18.3 CFM | 0.512 m³/min | 1.68 W | 7 V | 13.8 VDC | 37 dB | CE CSA UL VDE | 70000 Hrs | Tubeaxial | Plastic | Plastic | Ball | 70 °C | 70 °C | -10 °C | -10 °C | 3 Wire Leads | 50 mm | 50 mm | 6400 RPM | 0.085 lb | 38.56 g | 0.254 in H2O | 63.3 Pa | 12 VDC | 20 mm | 140 mA | Locked Rotor Sensor | |
Delta Electronics | 15.8 CFM | 0.442 m³/min | 1.2 W | 7 V | 13.8 VDC | 33 dB(A) | CE CSA UL VDE | 70000 Hrs | Tubeaxial | Plastic | Plastic | Ball | 70 °C | 70 °C | -10 °C | -10 °C | 3 Wire Leads | 50 mm | 50 mm | 5600 RPM | 0.085 lb | 38.56 g | 0.182 in H2O | 45.3 Pa | 12 VDC | 20 mm | 100 mA | Locked Rotor Protection Speed Sensor (Tach) | |
Delta Electronics | 1.2 W | 7 V | 13.8 VDC | 32 dB | CE CSA UL VDE | 70000 Hrs | 15 mm | Tubeaxial | Plastic | Plastic | Ball | 70 °C | 70 °C | -10 °C | -10 °C | 2 Wire Leads | 50 mm | 50 mm | 5600 RPM | 0.071 lb | 32.21 g | 0.24 in H2O | 59.8 Pa | 12 VDC | 100 mA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.84 | |
| 10 | $ 7.33 | |||
| 25 | $ 6.65 | |||
| 50 | $ 6.14 | |||
| 100 | $ 6.00 | |||
Description
General part information
AFB0512 Series
Fan Tubeaxial 12VDC Square - 50mm L x 50mm H Ball 16.2 CFM (0.454m³/min) 3 Wire Leads
