19460160302
ActiveHARTING Technology Group

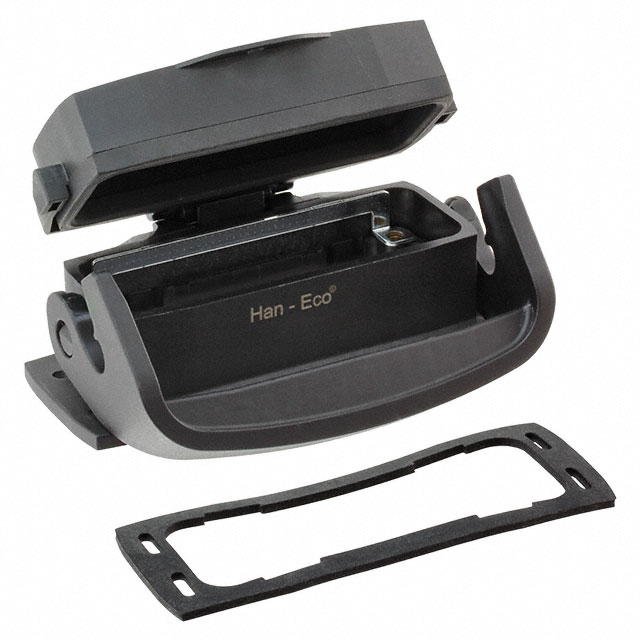

HEAVY DUTY CONNECTOR, BASE, BULKHEAD MOUNT, NYLON (POLYAMIDE), FIBREGLASS REINFORCED, 1 LEVER
Deep-Dive with AI
Search across all available documentation for this part.
19460160302
ActiveHARTING Technology Group
HEAVY DUTY CONNECTOR, BASE, BULKHEAD MOUNT, NYLON (POLYAMIDE), FIBREGLASS REINFORCED, 1 LEVER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 19460160302 |
|---|---|
| Connector Type | Base - Panel Mount |
| Features | Cover |
| Housing Color | Black |
| Housing Material | Polyamide (PA), Nylon, Glass Filled |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Lock Location | Locking Clip (1) on Base Bottom |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Size | 16 A |
| Size / Dimension [x] | 97.5 mm |
| Size / Dimension [x] | 3.839 in |
| Size / Dimension [y] | 40 mm |
| Size / Dimension [y] | 1.575 in |
| Size / Dimension [z] | 27 mm |
| Size / Dimension [z] | 1.063 " |
| Style | Bottom Entry |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
19460160 Series
Base - Panel Mount Connector Bottom Entry 16A IP65 - Dust Tight, Water Resistant
