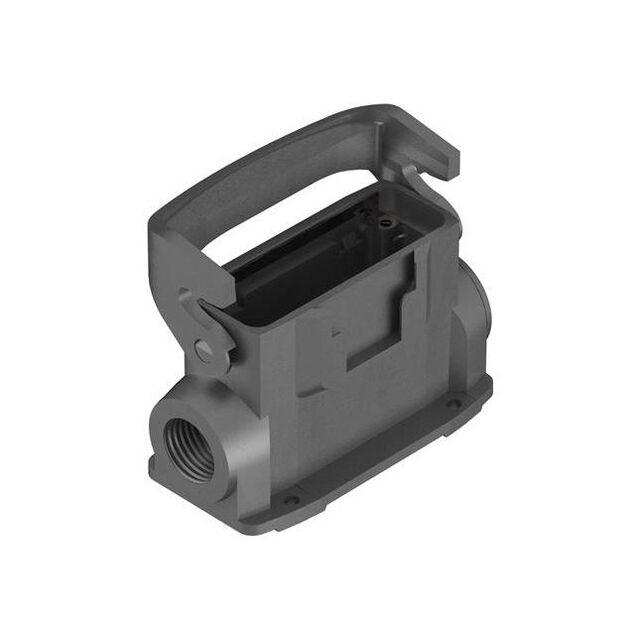

ENCLOSURE FOR CONNECTORS: HDC; SIZE 16A; HAN-ECO® A; IP65; M20

Deep-Dive with AI

Search across all available documentation for this part.

Documents19460160290 Prod Declaration Cert Datasheet

19460160290

Active

HARTING Technology Group

ENCLOSURE FOR CONNECTORS: HDC; SIZE 16A; HAN-ECO® A; IP65; M20

Deep-Dive with AI

Documents19460160290 Prod Declaration Cert Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	19460160290

Connector Type	Base - Box Mount
Features	Feed Through
Housing Color	Black
Housing Material	Polyamide (PA), Nylon, Glass Filled
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	16 A
Style	Side Entry, Dual
Thread Size	M20

19460160 Series

Part	Housing Color	Housing Material	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Size	Connector Type	Style	Lock Location	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Thread Size	Features
HARTING Technology Group 19460160301	Black	Polyamide (PA) Nylon Glass Filled	125 °C	-40 °C	IP65 - Dust Tight Water Resistant	16 A	Base - Panel Mount	Bottom Entry	Locking Clip (1) on Base Bottom	40 mm	97.5 mm	27 mm	3.839 in	1.063 "	1.575 in
HARTING Technology Group 19460160252	Black	Polyamide (PA) Nylon Glass Filled	125 °C	-40 °C	IP65 - Dust Tight Water Resistant	16 A	Base - Box Mount	Side Entry	Locking Clip (1) on Base Bottom	50 mm	97.1 mm	61.15 mm	3.823 in	2.407 in	1.969 in	M20	Cover
HARTING Technology Group 19460160290	Black	Polyamide (PA) Nylon Glass Filled	125 °C	-40 °C	IP65 - Dust Tight Water Resistant	16 A	Base - Box Mount	Side Entry Dual	Locking Clip (1) on Base Bottom							M20	Feed Through
HARTING Technology Group 19460160302	Black	Polyamide (PA) Nylon Glass Filled	125 °C	-40 °C	IP65 - Dust Tight Water Resistant	16 A	Base - Panel Mount	Bottom Entry	Locking Clip (1) on Base Bottom	40 mm	97.5 mm	27 mm	3.839 in	1.063 "	1.575 in		Cover
HARTING Technology Group 19460160545	Black	Polyamide (PA) Nylon Glass Filled	125 °C	-40 °C	IP65 - Dust Tight Water Resistant	16 A	Hood	Side Entry	Locking Clip (1) on Base Bottom							M20
HARTING Technology Group 19460160436	Black	Polyamide (PA) Nylon Glass Filled	125 °C	-40 °C	IP65 - Dust Tight Water Resistant	16 A	Hood - Coupling	Top Entry	Locking Clip (1) on Hood							M25	Cable to Cable
HARTING Technology Group 19460160293	Black	Polyamide (PA) Nylon Glass Filled	125 °C	-40 °C	IP65 - Dust Tight Water Resistant	16 A	Base - Box Mount	Side Entry Dual	Locking Clip (1) on Base Bottom							M25
HARTING Technology Group 19460160292	Black	Polyamide (PA) Nylon Glass Filled	125 °C	-40 °C	IP65 - Dust Tight Water Resistant	16 A	Base - Box Mount	Side Entry Dual	Locking Clip (1) on Base Bottom							M20

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 44.42
Newark	Each	1	$ 32.58
		10	$ 29.54
		25	$ 28.36
		50	$ 26.51
		100	$ 25.49
		250	$ 24.14
TME	N/A	1	$ 35.11
		3	$ 29.84
		10	$ 26.33

Description

General part information

19460160 Series

Base - Box Mount Connector Side Entry, Dual M20 16A IP65 - Dust Tight, Water Resistant

Documents

Technical documentation and resources

19460160290 Prod Declaration Cert

Datasheet
