19460160301
ActiveHARTING Technology Group

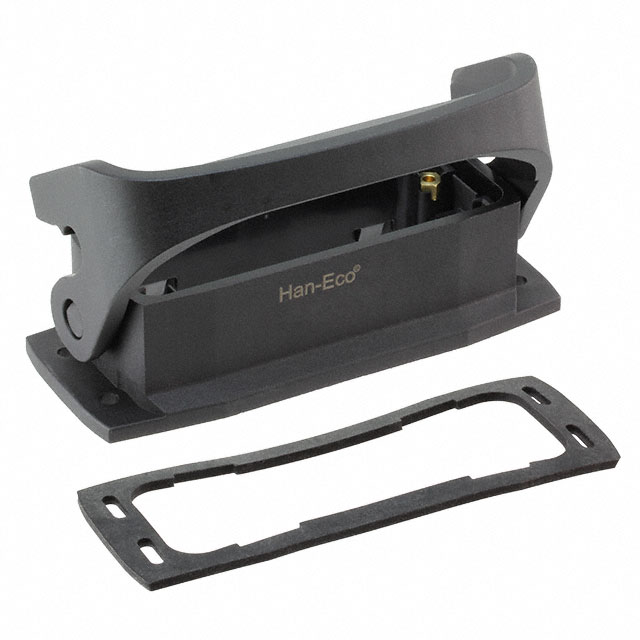

HAN-ECO 16A-HBM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 19460160301 |
|---|---|
| Connector Type | Base - Panel Mount |
| Housing Color | Black |
| Housing Material | Polyamide (PA), Nylon, Glass Filled |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Lock Location | Locking Clip (1) on Base Bottom |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Size | 16 A |
| Size / Dimension [x] | 97.5 mm |
| Size / Dimension [x] | 3.839 in |
| Size / Dimension [y] | 40 mm |
| Size / Dimension [y] | 1.575 in |
| Size / Dimension [z] | 27 mm |
| Size / Dimension [z] | 1.063 " |
| Style | Bottom Entry |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 19.77 | |
| 10 | $ 17.31 | |||
| 25 | $ 16.56 | |||
| 50 | $ 16.03 | |||
| 100 | $ 15.49 | |||
| 250 | $ 14.64 | |||
| 500 | $ 14.21 | |||
Description
General part information
19460160 Series
Base - Panel Mount Connector Bottom Entry 16A IP65 - Dust Tight, Water Resistant
