W2S130-AA25-44
Activeebm-papst Inc.
AC AXIAL FAN, TUBEAXIAL, 115V, CIRCULAR, 172 MM, 55 MM, BALL BEARING, 223.6 CFM
Deep-Dive with AI
Search across all available documentation for this part.
W2S130-AA25-44
Activeebm-papst Inc.
AC AXIAL FAN, TUBEAXIAL, 115V, CIRCULAR, 172 MM, 55 MM, BALL BEARING, 223.6 CFM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | W2S130-AA25-44 |
|---|---|
| Air Flow | 6.26 mł/min |
| Air Flow | 223.6 CFM |
| Approval Agency | UL, CE, VDE, CSA |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Material - Blade | Steel |
| Material - Frame | Aluminum |
| Noise | 53 dB |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -25 °C |
| Power (Watts) | 38 W |
| Size / Dimension | Round |
| Size / Dimension [diameter] | 150 mm |
| Termination | 2 Terminals |
| Voltage - Rated | 115 VAC |
| Weight | 2.4 lbs |
| Weight | 1.1 kg |
| Width [y] | 55 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 98.86 | |
| 10 | $ 88.85 | |||
| 30 | $ 87.60 | |||
| 50 | $ 81.97 | |||
| 100 | $ 80.09 | |||
Description
General part information
W2S130 Series

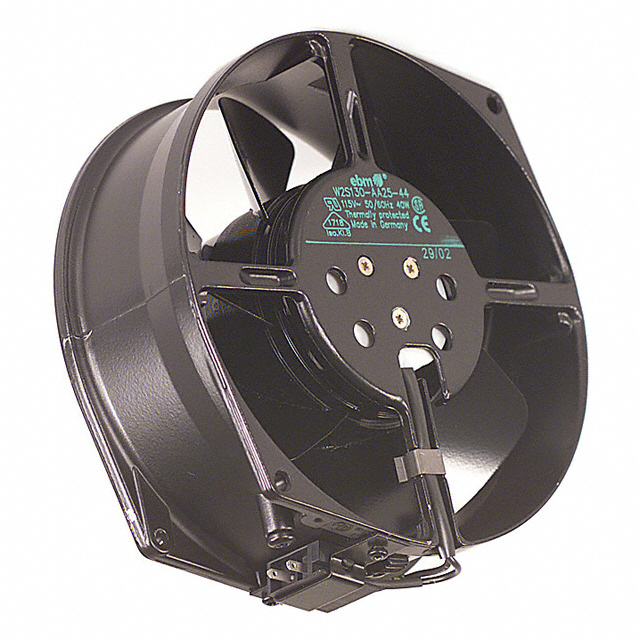

The W2S130-AA25-44 is a 115AC Axial Fan with ball bearing and external rotor shaded pole motor, impedance protected against overloading, mounting from either face using two 45mm holes, terminal power connection. Die-cast aluminum coated in black housing and impeller of sheet steel coated in black.
