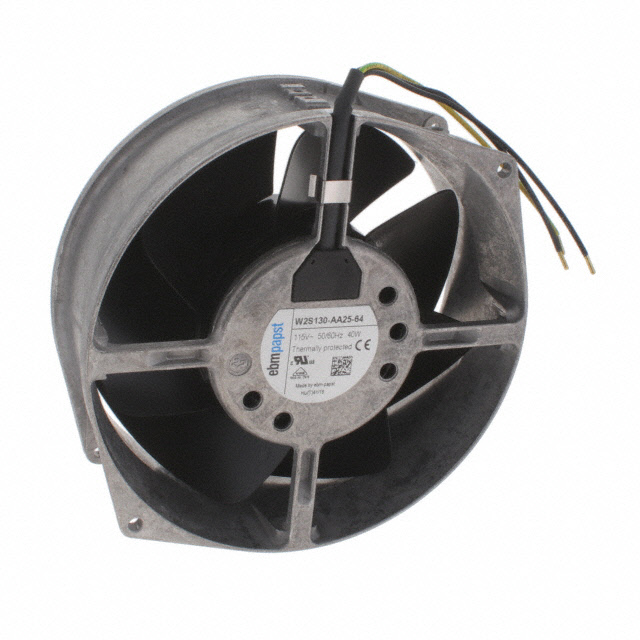

W2S130-AA25-64

Active

ebm-papst Inc.

AC AXIAL FAN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

W2S130-AA25-64

Active

ebm-papst Inc.

AC AXIAL FAN

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	W2S130-AA25-64

Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Current Rating (Amps)	0.47 A
Fan Type	Tubeaxial
Features	Thermal Overload Protector (TOP)
Material - Blade	Steel
Material - Frame	Aluminum
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	40 W
RPM	3250 RPM
Size / Dimension	Round
Size / Dimension [diameter]	172 mm
Termination	3 Wire Leads with Splice Terminals
Voltage - Rated	115 VAC
Width [y]	55 mm

W2S130 Series

Part	Fan Type	Features	Size / Dimension	Size / Dimension [diameter]	Termination	Voltage - Rated	RPM	Material - Blade	Power (Watts)	Width [y]	Approval Agency	Bearing Type	Ingress Protection	Current Rating (Amps)	Material - Frame	Noise	Air Flow	Air Flow	Weight	Weight	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]
ebm-papst Inc. W2S130-AB03-11	Tubeaxial	Thermal Overload Protector (TOP)	Round	172 mm	2 Wire Leads	230 VAC	3250 RPM	Steel	39 W	55 mm	CE	Ball	IP54 - Dust Protected Water Resistant	0.25 A	Aluminum
ebm-papst Inc. W2S130-AA25-44	Tubeaxial		Round	150 mm	2 Terminals	115 VAC		Steel	38 W	55 mm	CE CSA UL VDE	Ball			Aluminum	53 dB	6.26 mł/min	223.6 CFM	2.4 lbs	1.1 kg	-25 °C	60 °C
ebm-papst Inc. W2S130-AA25-51	Tubeaxial		Round	150 mm	2 Terminals	115 VAC		Steel	38 W	55 mm	CE CSA UL	Ball			Aluminum	52 dB	6.3 m³/min	225 CFM	2.4 lbs	1.1 kg
ebm-papst Inc. W2S130-AA25-64	Tubeaxial	Thermal Overload Protector (TOP)	Round	172 mm	3 Wire Leads with Splice Terminals	115 VAC	3250 RPM	Steel	40 W	55 mm	CE CSA UL VDE	Ball		0.47 A	Aluminum						-25 °C	70 °C	-25 °C	70 °C
ebm-papst Inc. W2S130-AB03-21	Tubeaxial	Thermal Overload Protector (TOP)	Round	172 mm	2 Wire Leads with Splice Terminals	230 VAC	3250 RPM	Steel	39 W	55 mm	CE	Ball		0.25 A	Aluminum						-25 °C	80 C	-25 °C		80 °C
ebm-papst Inc. W2S130-AA25-65	Tubeaxial	Thermal Overload Protector (TOP)	Round	150 mm	2 Terminals	115 VAC	3250 RPM	Steel	40 W	55 mm	CE CSA UL VDE	Ball		0.47 A	Aluminum	53 dB	6.26 mł/min	223.6 CFM	2.4 lbs	1.1 kg	-25 °C	90 °C	-25 °C	90 °C
ebm-papst Inc. W2S130-AB03-09												Ball
ebm-papst Inc. W2S130-AA03-44	Tubeaxial		Round	150 mm	2 Terminals	230 VAC		Steel	38 W	55 mm	CE CSA UL VDE	Ball			Aluminum	53 dB	6.26 mł/min	223.6 CFM	2.4 lbs	1.1 kg	-40 °C	80 C	-40 °C		80 °C
ebm-papst Inc. W2S130-AA25-97	Tubeaxial	Thermal Overload Protector (TOP)	Round	172 mm	2 Wire Leads with Splice Terminals	115 VAC	3250 RPM	Steel	38 W	55 mm	CE CSA UL VDE	Ball		0.47 A	Aluminum						-25 °C	90 °C	-25 °C	90 °C
ebm-papst Inc. W2S130-AB03-19	Tubeaxial	Thermal Overload Protector (TOP)	Round	172 mm	2 Wire Leads with Splice Terminals	230 VAC	3250 RPM	Steel	39 W	55 mm	CE	Ball	IP44	0.25 A	Aluminum						-25 °C	60 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 155.59
		10	$ 143.31
		25	$ 134.10
		50	$ 132.05
Newark	Each	10	$ 181.42
		25	$ 168.25
		50	$ 158.11
		100	$ 148.99

Description

General part information

W2S130 Series

Fan Tubeaxial 115VAC Round - 172mm Dia Ball 3 Wire Leads with Splice Terminals
