W2S130-AB03-21

Active

ebm-papst Inc.

AC AXIAL FAN, 230V, CIRCULAR, 150 MM, 55 MM, BALL BEARING, 223.6 CFM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsManufacturer Catalogue EN Technical Data Sheet EN

W2S130-AB03-21

Active

ebm-papst Inc.

AC AXIAL FAN, 230V, CIRCULAR, 150 MM, 55 MM, BALL BEARING, 223.6 CFM

Deep-Dive with AI

DocumentsManufacturer Catalogue EN Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	W2S130-AB03-21

Approval Agency	CE
Bearing Type	Ball
Current Rating (Amps)	0.25 A
Fan Type	Tubeaxial
Features	Thermal Overload Protector (TOP)
Material - Blade	Steel
Material - Frame	Aluminum
Operating Temperature [Max]	80 C
Operating Temperature [Max]	80 °C
Operating Temperature [Min]	-25 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	39 W
RPM	3250 RPM
Size / Dimension	Round
Size / Dimension [diameter]	172 mm
Termination	2 Wire Leads with Splice Terminals
Voltage - Rated	230 VAC
Width [y]	55 mm

W2S130 Series

Part	Fan Type	Features	Size / Dimension	Size / Dimension [diameter]	Termination	Voltage - Rated	RPM	Material - Blade	Power (Watts)	Width [y]	Approval Agency	Bearing Type	Ingress Protection	Current Rating (Amps)	Material - Frame	Noise	Air Flow	Air Flow	Weight	Weight	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]
ebm-papst Inc. W2S130-AB03-11	Tubeaxial	Thermal Overload Protector (TOP)	Round	172 mm	2 Wire Leads	230 VAC	3250 RPM	Steel	39 W	55 mm	CE	Ball	IP54 - Dust Protected Water Resistant	0.25 A	Aluminum
ebm-papst Inc. W2S130-AA25-44	Tubeaxial		Round	150 mm	2 Terminals	115 VAC		Steel	38 W	55 mm	CE CSA UL VDE	Ball			Aluminum	53 dB	6.26 mł/min	223.6 CFM	2.4 lbs	1.1 kg	-25 °C	60 °C
ebm-papst Inc. W2S130-AA25-51	Tubeaxial		Round	150 mm	2 Terminals	115 VAC		Steel	38 W	55 mm	CE CSA UL	Ball			Aluminum	52 dB	6.3 m³/min	225 CFM	2.4 lbs	1.1 kg
ebm-papst Inc. W2S130-AA25-64	Tubeaxial	Thermal Overload Protector (TOP)	Round	172 mm	3 Wire Leads with Splice Terminals	115 VAC	3250 RPM	Steel	40 W	55 mm	CE CSA UL VDE	Ball		0.47 A	Aluminum						-25 °C	70 °C	-25 °C	70 °C
ebm-papst Inc. W2S130-AB03-21	Tubeaxial	Thermal Overload Protector (TOP)	Round	172 mm	2 Wire Leads with Splice Terminals	230 VAC	3250 RPM	Steel	39 W	55 mm	CE	Ball		0.25 A	Aluminum						-25 °C	80 C	-25 °C		80 °C
ebm-papst Inc. W2S130-AA25-65	Tubeaxial	Thermal Overload Protector (TOP)	Round	150 mm	2 Terminals	115 VAC	3250 RPM	Steel	40 W	55 mm	CE CSA UL VDE	Ball		0.47 A	Aluminum	53 dB	6.26 mł/min	223.6 CFM	2.4 lbs	1.1 kg	-25 °C	90 °C	-25 °C	90 °C
ebm-papst Inc. W2S130-AB03-09												Ball
ebm-papst Inc. W2S130-AA03-44	Tubeaxial		Round	150 mm	2 Terminals	230 VAC		Steel	38 W	55 mm	CE CSA UL VDE	Ball			Aluminum	53 dB	6.26 mł/min	223.6 CFM	2.4 lbs	1.1 kg	-40 °C	80 C	-40 °C		80 °C
ebm-papst Inc. W2S130-AA25-97	Tubeaxial	Thermal Overload Protector (TOP)	Round	172 mm	2 Wire Leads with Splice Terminals	115 VAC	3250 RPM	Steel	38 W	55 mm	CE CSA UL VDE	Ball		0.47 A	Aluminum						-25 °C	90 °C	-25 °C	90 °C
ebm-papst Inc. W2S130-AB03-19	Tubeaxial	Thermal Overload Protector (TOP)	Round	172 mm	2 Wire Leads with Splice Terminals	230 VAC	3250 RPM	Steel	39 W	55 mm	CE	Ball	IP44	0.25 A	Aluminum						-25 °C	60 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 201.57
		10	$ 185.66
		25	$ 173.72
		50	$ 171.07
Newark	Each	1	$ 196.23
		5	$ 191.33
		10	$ 186.42
		25	$ 176.61
		50	$ 166.80

Description

General part information

W2S130 Series

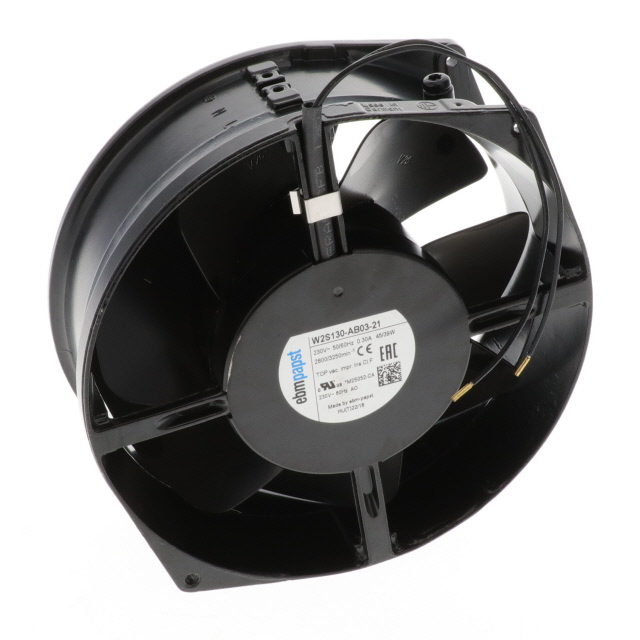

The W2S130-AB03-21 is a 230VAC Compact Axial Fan with a ball bearing and black coated sheet steel 7-sickled blades. This AC fan comes with black coated rotor surface and black coated die-cast aluminum wall ring. The direction of rotation is counter-clockwise seen on rotor and the motor comes wired internally wire with thermal overload protector (TOP). The power connection is via tips crimped 20AWG 2x brass lead wire cable.

Documents

Technical documentation and resources

Manufacturer Catalogue EN

Datasheet

Technical Data Sheet EN

Datasheet
