811-431

Active

WAGO Corporation

FUSED TERMINAL BLOCK, 6 POSITIONS, 16 AWG, 6 AWG, 16 MM², CLAMP, 30 A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

811-431

Active

WAGO Corporation

FUSED TERMINAL BLOCK, 6 POSITIONS, 16 AWG, 6 AWG, 16 MM², CLAMP, 30 A

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	811-431

Color	Gray
Current - IEC	32 A
Disconnect Type	Fuse
Features	LED Indicator
Material - Insulation	Polyamide (PA66), Nylon 6/6
Number of Levels	1
Number of Positions	6
Stripping Length [Max]	13 mm
Stripping Length [Min]	12 mm
Terminal - Width [y]	52.5 mm
Termination Style	Push In, Spring
Type	Disconnect
Voltage - IEC	600 V
Wire Gauge or Range - AWG [Max]	14 AWG
Wire Gauge or Range - AWG [Min]	6 AWG
Wire Gauge or Range - mm² [Max]	16 mm²
Wire Gauge or Range - mm² [Min]	2.5 mm²

811 Series

Part	Current - IEC	Disconnect Type	Number of Levels	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Material - Insulation	Terminal - Width	Number of Positions	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Color	Termination Style	Voltage - IEC	Features	Type	Stripping Length [Min]	Stripping Length [Max]	Terminal - Width [y]
WAGO Corporation 811-411	32 A	Fuse	1	14 AWG	6 AWG	Polyamide (PA66) Nylon 6/6	17.5 mm	2	16 mm²	2.5 mm²	Gray	Push In Spring	600 V	LED Indicator	Disconnect	12 mm	13 mm
WAGO Corporation 811-421	32 A	Fuse	1	14 AWG	6 AWG	Polyamide (PA66) Nylon 6/6		4	16 mm²	2.5 mm²	Gray	Push In Spring	600 V	LED Indicator	Disconnect	12 mm	13 mm	35 mm
WAGO Corporation 811-431	32 A	Fuse	1	14 AWG	6 AWG	Polyamide (PA66) Nylon 6/6		6	16 mm²	2.5 mm²	Gray	Push In Spring	600 V	LED Indicator	Disconnect	12 mm	13 mm	52.5 mm
WAGO Corporation 811-430	32 A	Fuse	1	14 AWG	6 AWG	Polyamide (PA66) Nylon 6/6		6	16 mm²	2.5 mm²	Gray	Push In Spring	600 V		Disconnect	12 mm	13 mm	52.5 mm
WAGO Corporation 811-410	32 A	Fuse	1	14 AWG	6 AWG	Polyamide (PA66) Nylon 6/6	17.5 mm	2	16 mm²	2.5 mm²	Gray	Push In Spring	600 V		Disconnect	12 mm	13 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 47.25
Newark	Each	1	$ 83.32
		25	$ 78.65
		100	$ 74.37
		250	$ 70.09
		500	$ 66.58

Description

General part information

811 Series

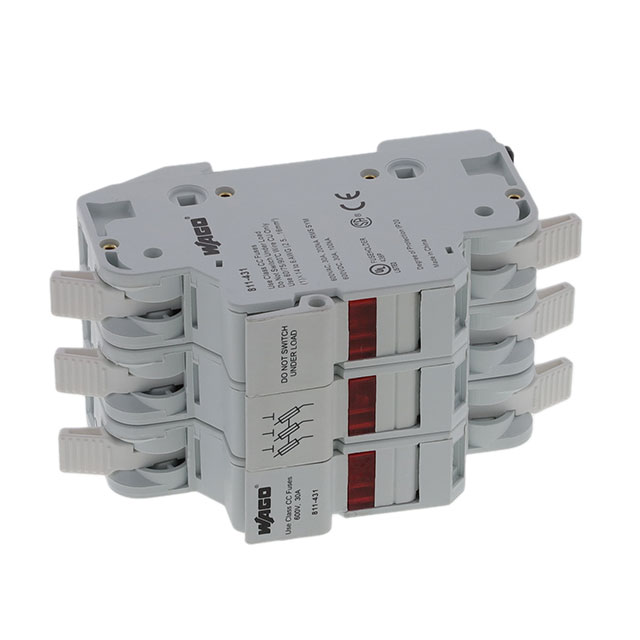

The 811-431 is a 6P3C Fuse Terminal Block for class CC fuses. It comes with a polyamide 66 (PA 66) insulator and blown fuse indication. The block is suitable for DIN-35 rail according to EN 60715.
