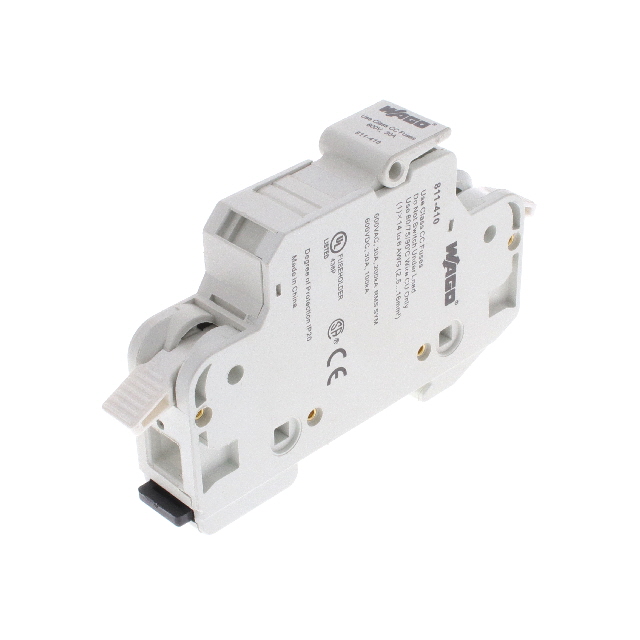

811-410

Active

WAGO Corporation

FUSED TERMINAL BLOCK, 2 POSITIONS, 16 AWG, 6 AWG, 16 MM², CLAMP, 30 A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

811-410

Active

WAGO Corporation

FUSED TERMINAL BLOCK, 2 POSITIONS, 16 AWG, 6 AWG, 16 MM², CLAMP, 30 A

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	811-410

Color	Gray
Current - IEC	32 A
Disconnect Type	Fuse
Material - Insulation	Polyamide (PA66), Nylon 6/6
Number of Levels	1
Number of Positions	2
Stripping Length [Max]	13 mm
Stripping Length [Min]	12 mm
Terminal - Width	17.5 mm
Termination Style	Push In, Spring
Type	Disconnect
Voltage - IEC	600 V
Wire Gauge or Range - AWG [Max]	14 AWG
Wire Gauge or Range - AWG [Min]	6 AWG
Wire Gauge or Range - mm² [Max]	16 mm²
Wire Gauge or Range - mm² [Min]	2.5 mm²

811 Series

Part	Current - IEC	Disconnect Type	Number of Levels	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Material - Insulation	Terminal - Width	Number of Positions	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Color	Termination Style	Voltage - IEC	Features	Type	Stripping Length [Min]	Stripping Length [Max]	Terminal - Width [y]
WAGO Corporation 811-411	32 A	Fuse	1	14 AWG	6 AWG	Polyamide (PA66) Nylon 6/6	17.5 mm	2	16 mm²	2.5 mm²	Gray	Push In Spring	600 V	LED Indicator	Disconnect	12 mm	13 mm
WAGO Corporation 811-421	32 A	Fuse	1	14 AWG	6 AWG	Polyamide (PA66) Nylon 6/6		4	16 mm²	2.5 mm²	Gray	Push In Spring	600 V	LED Indicator	Disconnect	12 mm	13 mm	35 mm
WAGO Corporation 811-431	32 A	Fuse	1	14 AWG	6 AWG	Polyamide (PA66) Nylon 6/6		6	16 mm²	2.5 mm²	Gray	Push In Spring	600 V	LED Indicator	Disconnect	12 mm	13 mm	52.5 mm
WAGO Corporation 811-430	32 A	Fuse	1	14 AWG	6 AWG	Polyamide (PA66) Nylon 6/6		6	16 mm²	2.5 mm²	Gray	Push In Spring	600 V		Disconnect	12 mm	13 mm	52.5 mm
WAGO Corporation 811-410	32 A	Fuse	1	14 AWG	6 AWG	Polyamide (PA66) Nylon 6/6	17.5 mm	2	16 mm²	2.5 mm²	Gray	Push In Spring	600 V		Disconnect	12 mm	13 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 13.41
		10	$ 12.39
		100	$ 11.05
		1000	$ 9.77
Newark	Each	1	$ 18.78
		25	$ 17.81
		100	$ 16.76
		250	$ 15.80
		500	$ 14.67

Description

General part information

811 Series

The 811-410 is a 1-position light gray Fused Terminal Block for cylindrical fuses and suitable for DIN 35 rail according to EN 60715. It is made with the polyamide 66 (PA 66) insulator. It features CAGE CLAMP® connection technology and horizontal design.
