IS31FL3742A-QFLS4-TR
ActiveLumissil Microsystems
IC LED DRVR LIN PWM 38MA 48QFN
Deep-Dive with AI
Search across all available documentation for this part.
IS31FL3742A-QFLS4-TR
ActiveLumissil Microsystems
IC LED DRVR LIN PWM 38MA 48QFN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | IS31FL3742A-QFLS4-TR |
|---|---|
| Applications | General Purpose |
| Current - Output / Channel | 38 mA |
| Dimming | PWM |
| Frequency [Max] | 1 MHz |
| Frequency [Min] | 400 kHz |
| Internal Switch(s) | True |
| Mounting Type | Surface Mount |
| Number of Outputs | 30 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |

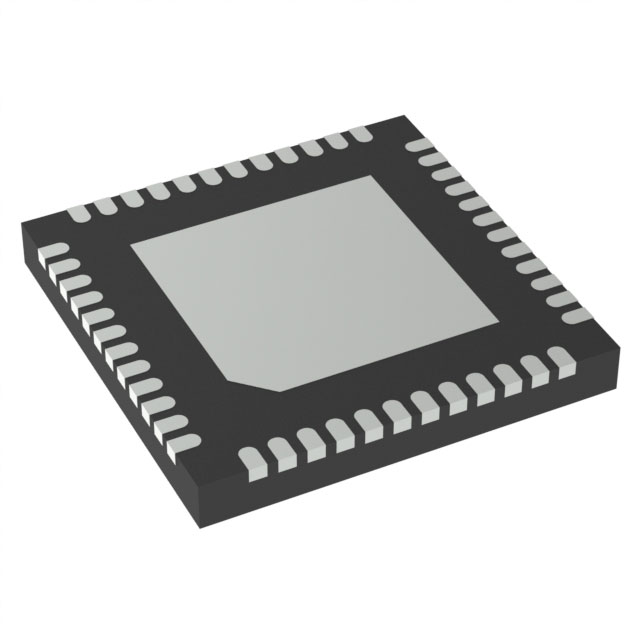

| Package / Case | 48-WFQFN Exposed Pad |
| Supplier Device Package | 48-QFN (6x6) |
| Topology | Shift Register |
| Type | Linear |
| Voltage - Supply (Max) | 5.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.80 | |
| 10 | $ 2.52 | |||
| 25 | $ 2.37 | |||
| 100 | $ 2.02 | |||
| 250 | $ 1.90 | |||
| 500 | $ 1.66 | |||
| 1000 | $ 1.38 | |||
| Digi-Reel® | 1 | $ 2.80 | ||
| 10 | $ 2.52 | |||
| 25 | $ 2.37 | |||
| 100 | $ 2.02 | |||
| 250 | $ 1.90 | |||
| 500 | $ 1.66 | |||
| 1000 | $ 1.38 | |||
| Tape & Reel (TR) | 2500 | $ 1.27 | ||
| 5000 | $ 1.20 | |||
| 7500 | $ 1.18 | |||
Description
General part information
IS31FL3742 Series
LED Driver IC 30 Output Linear Shift Register PWM Dimming 38mA 48-QFN (6x6)
Documents
Technical documentation and resources
No documents available
