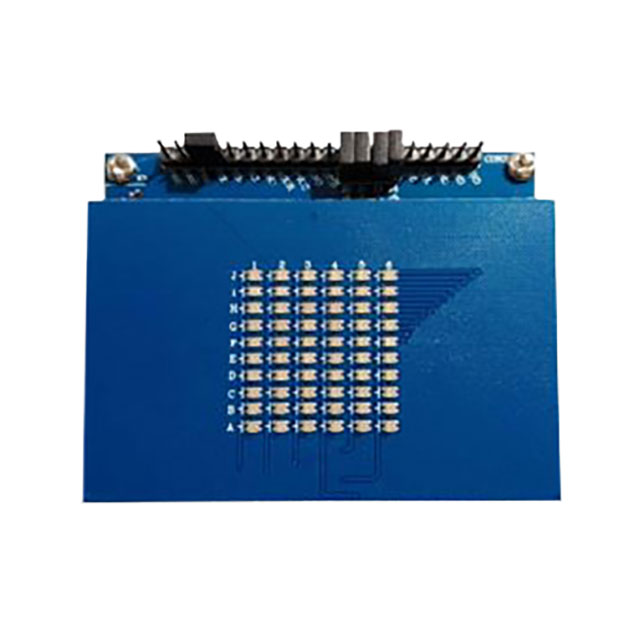

IS31FL3742A-QFLS4-EB

Active

Lumissil Microsystems

EVAL BOARD FOR IS31FL3742A-QFLS4

Search across all available documentation for this part.

Active

Lumissil Microsystems

EVAL BOARD FOR IS31FL3742A-QFLS4

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Supply (Max)	Frequency	Package / Case	Number of Outputs	Supplier Device Package	Applications	Mounting Type	Dimming	Operating Temperature [Max]	Operating Temperature [Min]	Type	Current - Output / Channel	Utilized IC / Part	Features	Voltage - Input [Min]	Voltage - Input [Max]	Supplied Contents	Outputs and Type	Frequency [Max]	Frequency [Min]	Topology
Lumissil Microsystems IS31FL3742-QFLS4-TR	5.5 V	1 MHz	48-WFQFN Exposed Pad	30	48-QFN (6x6)	General Purpose	Surface Mount	PWM	125 °C	-40 °C	Linear	38 mA
Lumissil Microsystems IS31FL3742A-QFLS4-EB												38 mA	IS31FL3742A	Dimmable	2.7 V	5.5 V	Board(s)	30 Non-Isolated Outputs
Lumissil Microsystems IS31FL3742-QFLS4-EB													IS31FL3742	Dimmable	2.7 V	5.5 V	Board(s)
Lumissil Microsystems IS31FL3742A-QFLS4-TR	5.5 V		48-WFQFN Exposed Pad	30	48-QFN (6x6)	General Purpose	Surface Mount	PWM	125 °C	-40 °C	Linear	38 mA							1 MHz	400 kHz	Shift Register

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 105.00

General part information

IS31FL3742A - 30 Non-Isolated Outputs pval(5) LED Driver Evaluation Board

Technical documentation and resources

No documents available
