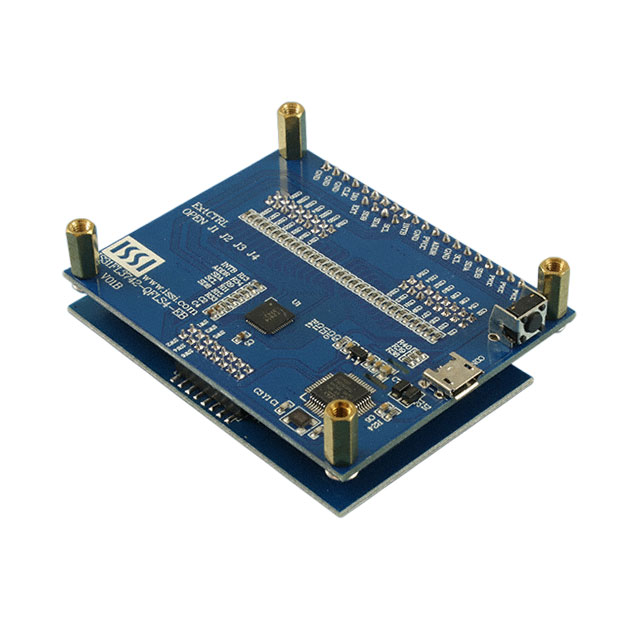

IS31FL3742-QFLS4-EB

Obsolete

Lumissil Microsystems

EVAL BOARD FOR IS31FL3742

Search across all available documentation for this part.

Obsolete

Lumissil Microsystems

EVAL BOARD FOR IS31FL3742

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Supply (Max)	Frequency	Package / Case	Number of Outputs	Supplier Device Package	Applications	Mounting Type	Dimming	Operating Temperature [Max]	Operating Temperature [Min]	Type	Current - Output / Channel	Utilized IC / Part	Features	Voltage - Input [Min]	Voltage - Input [Max]	Supplied Contents	Outputs and Type	Frequency [Max]	Frequency [Min]	Topology
Lumissil Microsystems IS31FL3742-QFLS4-TR	5.5 V	1 MHz	48-WFQFN Exposed Pad	30	48-QFN (6x6)	General Purpose	Surface Mount	PWM	125 °C	-40 °C	Linear	38 mA
Lumissil Microsystems IS31FL3742A-QFLS4-EB												38 mA	IS31FL3742A	Dimmable	2.7 V	5.5 V	Board(s)	30 Non-Isolated Outputs
Lumissil Microsystems IS31FL3742-QFLS4-EB													IS31FL3742	Dimmable	2.7 V	5.5 V	Board(s)
Lumissil Microsystems IS31FL3742A-QFLS4-TR	5.5 V		48-WFQFN Exposed Pad	30	48-QFN (6x6)	General Purpose	Surface Mount	PWM	125 °C	-40 °C	Linear	38 mA							1 MHz	400 kHz	Shift Register

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

IS31FL3742 Outputs LED Driver Evaluation Board
