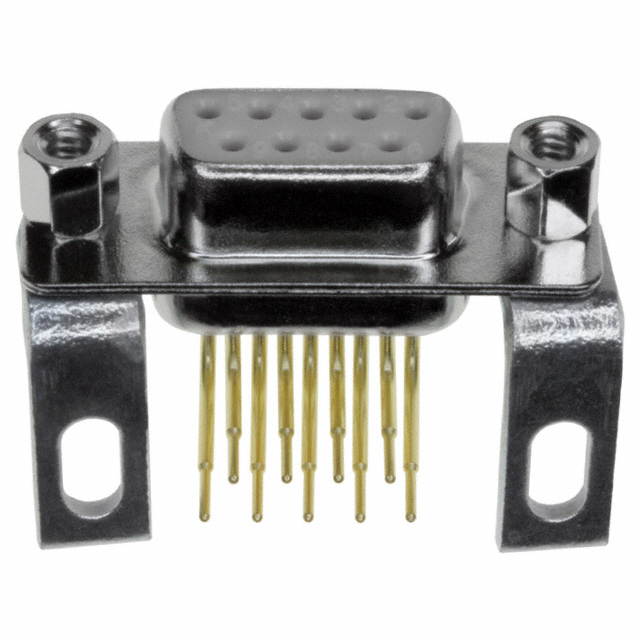

174-E09-213R141 - 174-E09-213R141

174-E09-213R141

Active
MH Connectors

D SUB CONNECTOR, DB9, STANDARD, RECEPTACLE, 174-E M SERIES, 9 CONTACTS, DE, SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsBackshell Reference GuideDatasheet+4
174-E09-213R141 - 174-E09-213R141

174-E09-213R141

Active
MH Connectors

D SUB CONNECTOR, DB9, STANDARD, RECEPTACLE, 174-E M SERIES, 9 CONTACTS, DE, SOLDER

Deep-Dive with AI

DocumentsBackshell Reference GuideDatasheet+4

Technical Specifications

Parameters and characteristics for this part

Specification174-E09-213R141
Backset Spacing9.4 mm
Backset Spacing0.37 in
ColorWhite
Connector StyleD-Sub
Connector TypeReceptacle, Female Sockets
Contact FinishGold
Contact Finish ThicknessFlash
Contact MaterialBrass
Contact TypeSignal
Current Rating (Amps)5 A
Dielectric MaterialPolyamide (PA6T), Nylon 6T
FeaturesMounting Brackets
Flange FeatureFemale Screwlock (4-40), Mating Side
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole, Right Angle, Panel Mount
Number of Positions9
Number of Rows2
Shell Material, FinishNickel Plated, Steel
Shell Size, Connector Layout [custom]DE, E
Shell Size, Connector Layout [custom]1
TerminationSolder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 9.59
10$ 7.35
25$ 6.64
40$ 6.31
80$ 5.86
230$ 5.25
440$ 4.92
945$ 4.56
NewarkEach 500$ 5.94
1000$ 5.05
5000$ 4.54

Description

General part information

174-E09 Series

9 Position D-Sub Receptacle, Female Sockets Connector
