174-E09-113R001
ActiveMH Connectors

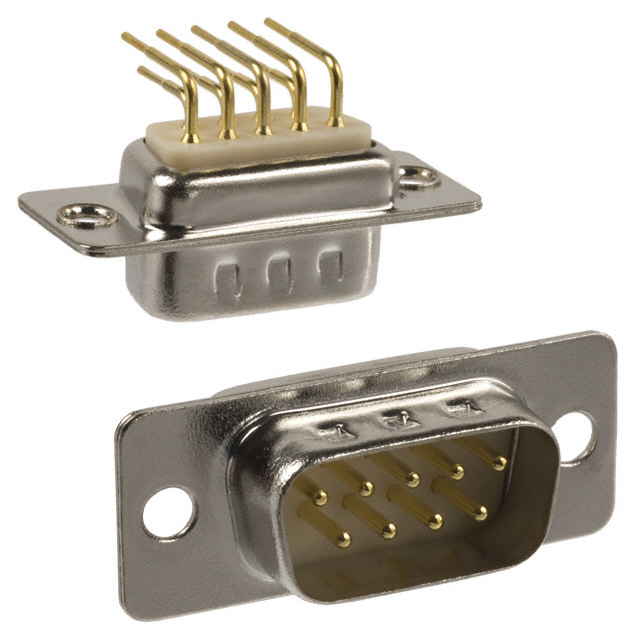

D SUB CONNECTOR, DB9, STANDARD, PLUG, 174-E M SERIES, 9 CONTACTS, DE, SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
174-E09-113R001
ActiveMH Connectors
D SUB CONNECTOR, DB9, STANDARD, PLUG, 174-E M SERIES, 9 CONTACTS, DE, SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 174-E09-113R001 |
|---|---|
| Backset Spacing | 9.4 mm |
| Backset Spacing | 0.37 in |
| Color | White |
| Connector Style | D-Sub |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Type | Signal |
| Current Rating (Amps) | 5 A |
| Dielectric Material | Polyamide (PA6T), Nylon 6T |
| Features | Grounding Indents |
| Flange Feature | Housing/Shell (Unthreaded) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Panel Mount |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout [custom] | DE, E |
| Shell Size, Connector Layout [custom] | 1 |
| Termination | Solder |
174-E09 Series
| Part | Contact Finish Thickness | Flange Feature | Number of Rows | Dielectric Material | Shell Material, Finish | Material Flammability Rating | Connector Style | Mounting Type | Number of Positions | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Color | Current Rating (Amps) | Features | Contact Finish | Connector Type | Contact Type | Termination | Backset Spacing | Backset Spacing | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MH Connectors | Flash | Housing/Shell (Unthreaded) | 2 | Polyamide (PA6T) Nylon 6T | Nickel Plated Steel | UL94 V-0 | D-Sub | Panel Mount Right Angle Through Hole | 9 | DE E | 1 | White | 5 A | Grounding Indents | Gold | Male Pins Plug | Signal | Solder | 9.4 mm | 0.37 in | |
MH Connectors | Flash | Female Screwlock (4-40) Mating Side | 2 | Polyamide (PA6T) Nylon 6T | Nickel Plated Steel | UL94 V-0 | D-Sub | Panel Mount Right Angle Through Hole | 9 | DE E | 1 | White | 5 A | Mounting Brackets | Gold | Receptacle Female Sockets | Signal | Solder | 9.4 mm | 0.37 in | Brass |
MH Connectors | Flash | Housing/Shell (Unthreaded) | 2 | Polybutylene Terephthalate (PBT) | UL94 V-0 | D-Sub | Panel Mount Right Angle Through Hole | 9 | DE E | 1 | White | 5 A | Grounding Indents | Gold | Male Pins Plug | Signal | Solder | 9.4 mm | 0.37 in | ||
MH Connectors | Flash | Housing/Shell (4-40) | 2 | Polyamide (PA6T) Nylon 6T | Nickel Plated Steel | UL94 V-0 | D-Sub | Panel Mount Right Angle Through Hole | 9 | DE E | 1 | White | 5 A | Board Lock Grounding Indents Mounting Brackets | Gold | Male Pins Plug | Signal | Solder | 9.4 mm | 0.37 in | Brass |
MH Connectors | Flash | Housing/Shell (Unthreaded) | 2 | Polybutylene Terephthalate (PBT) | UL94 V-0 | D-Sub | Panel Mount Right Angle Through Hole | 9 | DE E | 1 | White | 5 A | Gold | Receptacle Female Sockets | Signal | Solder | 9.4 mm | 0.37 in | |||
MH Connectors | Flash | Mating Side Standard Screws (4-40) | 2 | Polyamide (PA6T) Nylon 6T | Steel Yellow Chromate Plated | UL94 V-0 | D-Sub | Panel Mount Right Angle Through Hole | 9 | DE E | 1 | White | 5 A | Mounting Brackets | Gold | Receptacle Female Sockets | Signal | Solder | 9.4 mm | 0.37 in | Brass |
MH Connectors | Flash | Female Screwlock (4-40) Mating Side | 2 | Polybutylene Terephthalate (PBT) | UL94 V-0 | D-Sub | Panel Mount Right Angle Through Hole | 9 | DE E | 1 | White | 5 A | Mounting Brackets | Gold | Receptacle Female Sockets | Signal | Solder | 9.4 mm | 0.37 in | ||
MH Connectors | Flash | Housing/Shell (Unthreaded) | 2 | Polyamide (PA6T) Nylon 6T | Nickel Plated Steel | UL94 V-0 | D-Sub | Panel Mount Right Angle Through Hole | 9 | DE E | 1 | White | 5 A | Gold | Receptacle Female Sockets | Signal | Solder | 9.4 mm | 0.37 in | Brass | |
MH Connectors | Flash | Female Screwlock (4-40) Mating Side | 2 | Polyamide (PA6T) Nylon 6T | Steel Yellow Chromate Plated | UL94 V-0 | D-Sub | Panel Mount Right Angle Through Hole | 9 | DE E | 1 | White | 5 A | Mounting Brackets | Gold | Male Pins Plug | Signal | Solder | 9.4 mm | 0.37 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
174-E09 Series
9 Position D-Sub Plug, Male Pins Connector
