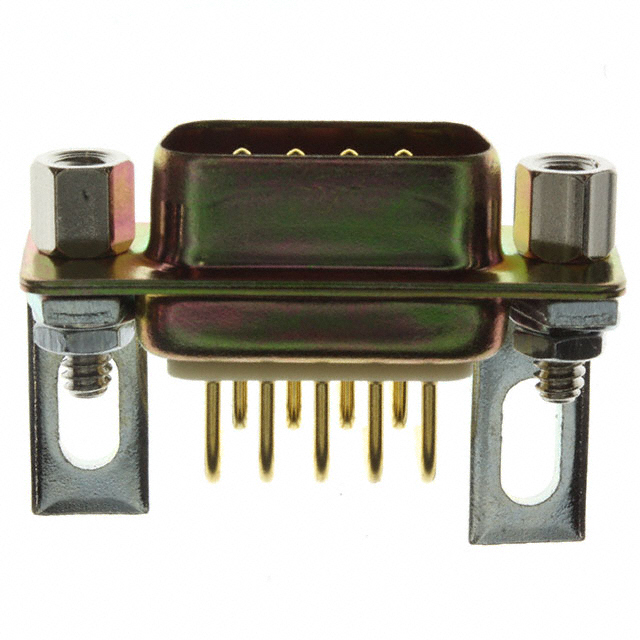

174-E09-111R141

Obsolete

MH Connectors

CONN D-SUB PLUG 9POS R/A SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Backshell Reference Guide

174-E09-111R141

Obsolete

MH Connectors

CONN D-SUB PLUG 9POS R/A SOLDER

Deep-Dive with AI

DocumentsDatasheet Backshell Reference Guide

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	174-E09-111R141

Backset Spacing	9.4 mm
Backset Spacing	0.37 in
Color	White
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polyamide (PA6T), Nylon 6T
Features	Mounting Brackets
Flange Feature	Female Screwlock (4-40), Mating Side
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	9
Number of Rows	2
Shell Material, Finish	Steel, Yellow Chromate Plated
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Termination	Solder

174-E09 Series

Part	Contact Finish Thickness	Flange Feature	Number of Rows	Dielectric Material	Shell Material, Finish	Material Flammability Rating	Connector Style	Mounting Type	Number of Positions	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Color	Current Rating (Amps)	Features	Contact Finish	Connector Type	Contact Type	Termination	Backset Spacing	Backset Spacing	Contact Material
MH Connectors 174-E09-113R001	Flash	Housing/Shell (Unthreaded)	2	Polyamide (PA6T) Nylon 6T	Nickel Plated Steel	UL94 V-0	D-Sub	Panel Mount Right Angle Through Hole	9	DE E	1	White	5 A	Grounding Indents	Gold	Male Pins Plug	Signal	Solder	9.4 mm	0.37 in
MH Connectors 174-E09-213R141	Flash	Female Screwlock (4-40) Mating Side	2	Polyamide (PA6T) Nylon 6T	Nickel Plated Steel	UL94 V-0	D-Sub	Panel Mount Right Angle Through Hole	9	DE E	1	White	5 A	Mounting Brackets	Gold	Receptacle Female Sockets	Signal	Solder	9.4 mm	0.37 in	Brass
MH Connectors 174-E09-112-001	Flash	Housing/Shell (Unthreaded)	2	Polybutylene Terephthalate (PBT)		UL94 V-0	D-Sub	Panel Mount Right Angle Through Hole	9	DE E	1	White	5 A	Grounding Indents	Gold	Male Pins Plug	Signal	Solder	9.4 mm	0.37 in
MH Connectors 174-E09-113R461	Flash	Housing/Shell (4-40)	2	Polyamide (PA6T) Nylon 6T	Nickel Plated Steel	UL94 V-0	D-Sub	Panel Mount Right Angle Through Hole	9	DE E	1	White	5 A	Board Lock Grounding Indents Mounting Brackets	Gold	Male Pins Plug	Signal	Solder	9.4 mm	0.37 in	Brass
MH Connectors 174-E09-212-001	Flash	Housing/Shell (Unthreaded)	2	Polybutylene Terephthalate (PBT)		UL94 V-0	D-Sub	Panel Mount Right Angle Through Hole	9	DE E	1	White	5 A		Gold	Receptacle Female Sockets	Signal	Solder	9.4 mm	0.37 in
MH Connectors 174-E09-211R241	Flash	Mating Side Standard Screws (4-40)	2	Polyamide (PA6T) Nylon 6T	Steel Yellow Chromate Plated	UL94 V-0	D-Sub	Panel Mount Right Angle Through Hole	9	DE E	1	White	5 A	Mounting Brackets	Gold	Receptacle Female Sockets	Signal	Solder	9.4 mm	0.37 in	Brass
MH Connectors 174-E09-212-141	Flash	Female Screwlock (4-40) Mating Side	2	Polybutylene Terephthalate (PBT)		UL94 V-0	D-Sub	Panel Mount Right Angle Through Hole	9	DE E	1	White	5 A	Mounting Brackets	Gold	Receptacle Female Sockets	Signal	Solder	9.4 mm	0.37 in
MH Connectors 174-E09-213R001	Flash	Housing/Shell (Unthreaded)	2	Polyamide (PA6T) Nylon 6T	Nickel Plated Steel	UL94 V-0	D-Sub	Panel Mount Right Angle Through Hole	9	DE E	1	White	5 A		Gold	Receptacle Female Sockets	Signal	Solder	9.4 mm	0.37 in	Brass
MH Connectors 174-E09-111R141	Flash	Female Screwlock (4-40) Mating Side	2	Polyamide (PA6T) Nylon 6T	Steel Yellow Chromate Plated	UL94 V-0	D-Sub	Panel Mount Right Angle Through Hole	9	DE E	1	White	5 A	Mounting Brackets	Gold	Male Pins Plug	Signal	Solder	9.4 mm	0.37 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

174-E09 Series

9 Position D-Sub Plug, Male Pins Connector
