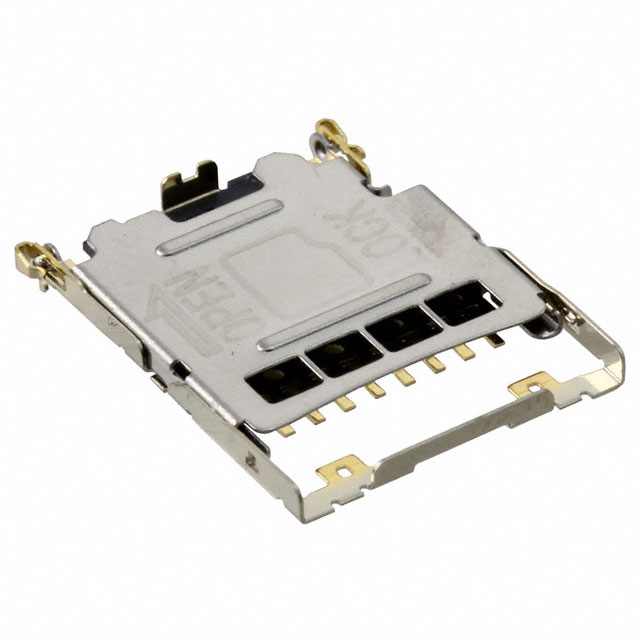

ST1W008S4TR2000
ActiveJAE Electronics
CONN MICRO SD CARD HINGED TYPE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ST1W008S4TR2000
ActiveJAE Electronics
CONN MICRO SD CARD HINGED TYPE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ST1W008S4TR2000 |
|---|---|
| Card Type | Secure Digital - microSD™ |
| Connector Type | Connector and Ejector |
| Contact Finish | Gold |
| Contact Finish Thickness | 19.7 µin |
| Contact Finish Thickness | 0.5 µm |
| Features | Switch |
| Height Above Board | 0.055 in |
| Height Above Board | 1.4 mm |
| Insertion, Removal Method | Hinged Lid |
| Mounting Feature | Normal, Standard - Top |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 9 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 6.18 | |
| 10 | $ 5.61 | |||
| 25 | $ 5.31 | |||
| 50 | $ 5.19 | |||
| 100 | $ 4.94 | |||
| 250 | $ 4.32 | |||
| 500 | $ 4.20 | |||
| 1000 | $ 3.58 | |||
| Digi-Reel® | 1 | $ 6.18 | ||
| 10 | $ 5.61 | |||
| 25 | $ 5.31 | |||
| 50 | $ 5.19 | |||
| 100 | $ 4.94 | |||
| 250 | $ 4.32 | |||
| 500 | $ 4.20 | |||
| 1000 | $ 3.58 | |||
| Tape & Reel (TR) | 2000 | $ 3.46 | ||
Description
General part information
ST1W008S Series
9 (8 + 1) Position Card Connector Secure Digital - microSD™ Surface Mount, Right Angle Gold
