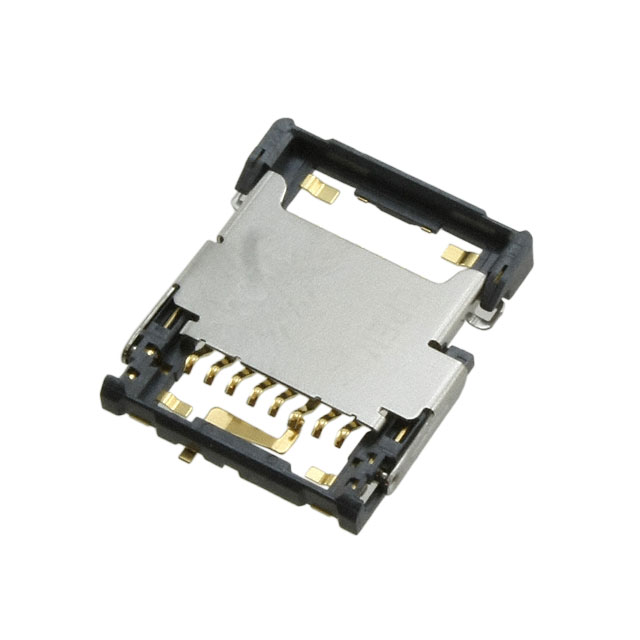

ST1W008S4BR1500
ActiveJAE Electronics
CONN MICRO SD CARD HINGED TYPE
Deep-Dive with AI
Search across all available documentation for this part.
ST1W008S4BR1500
ActiveJAE Electronics
CONN MICRO SD CARD HINGED TYPE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ST1W008S4BR1500 |
|---|---|
| Card Type | Secure Digital - microSD™ |
| Connector Type | Connector and Ejector |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.51 µm |
| Contact Finish Thickness | 20 µin |
| Features | Switch |
| Height Above Board | 0.079 in |
| Height Above Board | 2 mm |
| Insertion, Removal Method | Hinged Lid |
| Mounting Feature | Normal, Standard - Top |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 9 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.17 | |
| 10 | $ 1.89 | |||
| 25 | $ 1.81 | |||
| 50 | $ 1.77 | |||
| 100 | $ 1.69 | |||
| 250 | $ 1.53 | |||
| 500 | $ 1.41 | |||
| Digi-Reel® | 1 | $ 2.17 | ||
| 10 | $ 1.89 | |||
| 25 | $ 1.81 | |||
| 50 | $ 1.77 | |||
| 100 | $ 1.69 | |||
| 250 | $ 1.53 | |||
| 500 | $ 1.41 | |||
| Tape & Reel (TR) | 1500 | $ 1.17 | ||
| 3000 | $ 1.13 | |||
| 7500 | $ 1.07 | |||
Description
General part information
ST1W008S Series
9 (8 + 1) Position Card Connector Secure Digital - microSD™ Surface Mount, Right Angle Gold
