ST1W008S4DR1500

Active

JAE Electronics

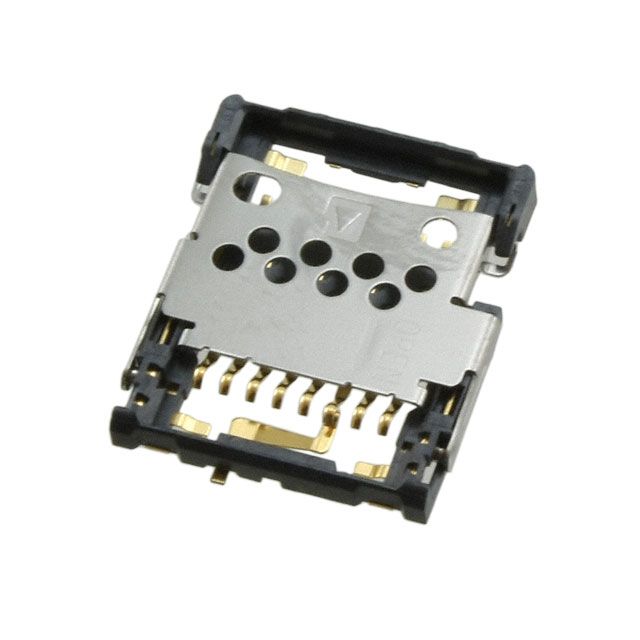

CONN MICRO SD CARD HINGED TYPE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ST1W008S4DR1500 Packaging

ST1W008S4DR1500

Active

JAE Electronics

CONN MICRO SD CARD HINGED TYPE

Deep-Dive with AI

DocumentsDatasheet ST1W008S4DR1500 Packaging

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ST1W008S4DR1500

Card Type	Secure Digital - microSD™
Connector Type	Connector and Ejector
Contact Finish	Gold
Contact Finish Thickness	19.7 µin
Contact Finish Thickness	0.5 µm
Features	Switch
Height Above Board	0.079 in
Height Above Board	2 mm
Insertion, Removal Method	Hinged Lid
Mounting Feature	Normal, Standard - Top
Mounting Type	Surface Mount, Right Angle
Number of Positions	9

ST1W008S Series

Part	Card Type	Insertion, Removal Method	Contact Finish Thickness	Height Above Board	Height Above Board	Mounting Type	Connector Type	Mounting Feature	Number of Positions	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Features
JAE Electronics ST1W008S4ER1500	Secure Digital - microSD™	Hinged Lid	Flash	0.079 in	2 mm	Surface Mount Right Angle	Connector and Ejector	Normal Standard - Top	8	Gold
JAE Electronics ST1W008S4AC100	Secure Digital - microSD™	Hinged Lid		0.079 in	2 mm	Surface Mount Right Angle		Normal Standard - Top	8	Gold
JAE Electronics ST1W008S4GR300	Secure Digital - microSD™	Hinged Lid		0.055 in	1.4 mm	Surface Mount Right Angle	Connector and Ejector	Normal Standard - Top	8	Gold	0.51 µm	20 µin
JAE Electronics C2777-ST1W008S4TR300	Secure Digital - microSD™	Hinged Lid		0.079 in	2 mm	Surface Mount Right Angle	Connector and Ejector	Normal Standard - Top	8	Gold	0.5 µm	19.7 µin
JAE Electronics ST1W008S4BR1500	Secure Digital - microSD™	Hinged Lid		0.079 in	2 mm	Surface Mount Right Angle	Connector and Ejector	Normal Standard - Top	9	Gold	0.51 µm	20 µin	Switch
JAE Electronics ST1W008S4E	Secure Digital - microSD™	Hinged Lid		0.079 in	2 mm	Surface Mount Right Angle	Connector and Ejector	Normal Standard - Top	8	Gold	0.5 µm	19.7 µin
JAE Electronics ST1W008S4DR1500	Secure Digital - microSD™	Hinged Lid		0.079 in	2 mm	Surface Mount Right Angle	Connector and Ejector	Normal Standard - Top	9	Gold	0.5 µm	19.7 µin	Switch
JAE Electronics ST1W008S4TR2000	Secure Digital - microSD™	Hinged Lid		0.055 in	1.4 mm	Surface Mount Right Angle	Connector and Ejector	Normal Standard - Top	9	Gold	0.5 µm	19.7 µin	Switch
JAE Electronics ST1W008S4GR2000	Secure Digital - microSD™	Hinged Lid		0.055 in	1.4 mm	Surface Mount Right Angle	Connector and Ejector	Normal Standard - Top	8	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

ST1W008S Series

9 (8 + 1) Position Card Connector Secure Digital - microSD™ Surface Mount, Right Angle Gold
