09380082601

Active

HARTING Technology Group

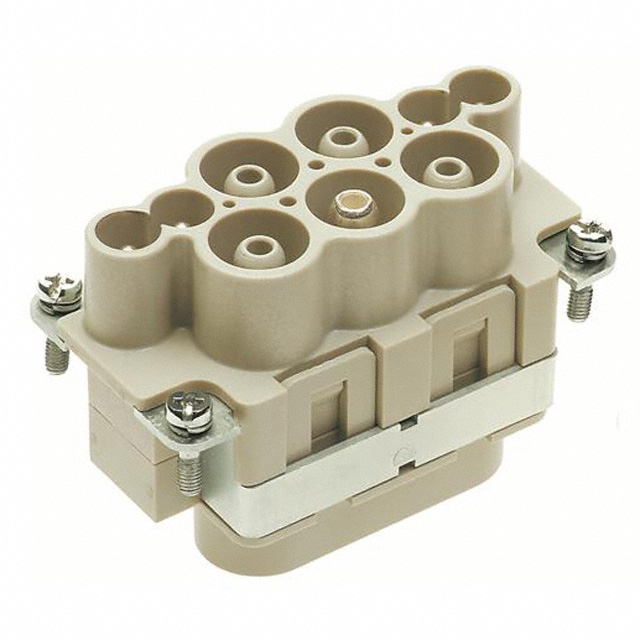

HEAVY DUTY CONNECTOR, 4/4+PE POWER-SIGNAL, FINGER SAFE, HAN-COM SERIES, INSERT, 9 CONTACTS, 10B

Search across all available documentation for this part.

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, 4/4+PE POWER-SIGNAL, FINGER SAFE, HAN-COM SERIES, INSERT, 9 CONTACTS, 10B

Technical Specifications

Parameters and characteristics for this part

Specification	09380082601

Color	Gray
Contact Finish	Silver
Contact Material	Copper Alloy
Gender	Male
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions	4
Number of Positions	Ground
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	10B
Termination Style	Push In, Screw

Part	Contact Finish	Material Flammability Rating	Size	Gender	Color	Termination Style	Contact Material	Housing Material	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Number of Positions	Size	Voltage Rating	Current Rating (Amps)
HARTING Technology Group 09380082612	Silver	UL94 V-0	10B	Male	Gray	Push In Screw	Copper Alloy	Polycarbonate (PC)	125 °C	-40 °C	4	Ground
HARTING Technology Group 09380082601	Silver	UL94 V-0	10B	Male	Gray	Push In Screw	Copper Alloy	Polycarbonate (PC)	125 °C	-40 °C	4	Ground
HARTING Technology Group 09380082611	Silver	UL94 V-0	10B	Male	Gray	Push In Screw	Copper Alloy	Polycarbonate (PC)	125 °C	-40 °C	4	Ground
HARTING Technology Group 09380082653	Silver	UL94 V-0		Male	Gray	Screw	Copper Alloy	Polycarbonate (PC)	125 °C	-40 °C		8+Ground	24 B	600 V	100 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Male Insert Gray 4+4+Ground Position Push In; Screw
