09380082612

LTB

HARTING Technology Group

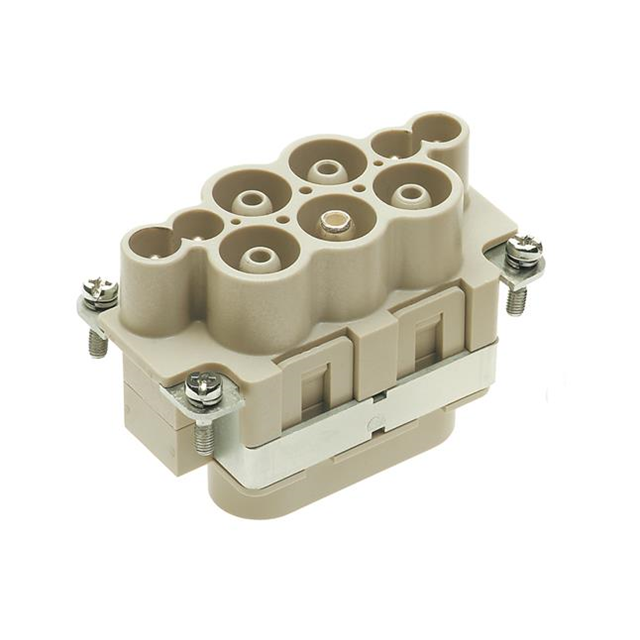

INSERT MALE 4+4POS+1GND PUSH IN

Search across all available documentation for this part.

LTB

HARTING Technology Group

INSERT MALE 4+4POS+1GND PUSH IN

Technical Specifications

Parameters and characteristics for this part

Specification	09380082612

Color	Gray
Contact Finish	Silver
Contact Material	Copper Alloy
Gender	Male
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions	4
Number of Positions	Ground
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	10B
Termination Style	Push In, Screw

Part	Contact Finish	Material Flammability Rating	Size	Gender	Color	Termination Style	Contact Material	Housing Material	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Number of Positions	Size	Voltage Rating	Current Rating (Amps)
HARTING Technology Group 09380082612	Silver	UL94 V-0	10B	Male	Gray	Push In Screw	Copper Alloy	Polycarbonate (PC)	125 °C	-40 °C	4	Ground
HARTING Technology Group 09380082601	Silver	UL94 V-0	10B	Male	Gray	Push In Screw	Copper Alloy	Polycarbonate (PC)	125 °C	-40 °C	4	Ground
HARTING Technology Group 09380082611	Silver	UL94 V-0	10B	Male	Gray	Push In Screw	Copper Alloy	Polycarbonate (PC)	125 °C	-40 °C	4	Ground
HARTING Technology Group 09380082653	Silver	UL94 V-0		Male	Gray	Screw	Copper Alloy	Polycarbonate (PC)	125 °C	-40 °C		8+Ground	24 B	600 V	100 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 178.01

General part information

Male Insert Gray 4+4+Ground Position Push In; Screw
