09380082653

Active

HARTING Technology Group

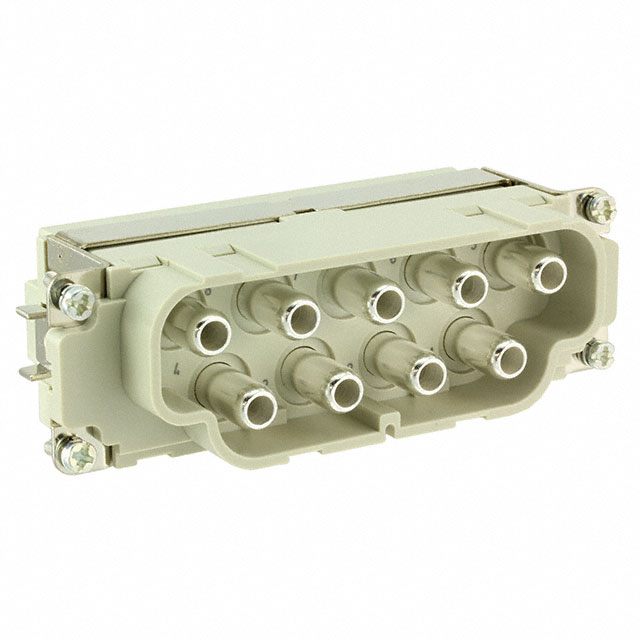

HAN K 8/0 POS. M INSERT 100 AMP. 10-25MM ROHS COMPLIANT: NA

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN K 8/0 POS. M INSERT 100 AMP. 10-25MM ROHS COMPLIANT: NA

Technical Specifications

Parameters and characteristics for this part

Specification	09380082653

Color	Gray
Contact Finish	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	100 A
Gender	Male
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions	8+Ground
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	24 B
Termination Style	Screw
Voltage Rating	600 V

Part	Contact Finish	Material Flammability Rating	Size	Gender	Color	Termination Style	Contact Material	Housing Material	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Number of Positions	Size	Voltage Rating	Current Rating (Amps)
HARTING Technology Group 09380082612	Silver	UL94 V-0	10B	Male	Gray	Push In Screw	Copper Alloy	Polycarbonate (PC)	125 °C	-40 °C	4	Ground
HARTING Technology Group 09380082601	Silver	UL94 V-0	10B	Male	Gray	Push In Screw	Copper Alloy	Polycarbonate (PC)	125 °C	-40 °C	4	Ground
HARTING Technology Group 09380082611	Silver	UL94 V-0	10B	Male	Gray	Push In Screw	Copper Alloy	Polycarbonate (PC)	125 °C	-40 °C	4	Ground
HARTING Technology Group 09380082653	Silver	UL94 V-0		Male	Gray	Screw	Copper Alloy	Polycarbonate (PC)	125 °C	-40 °C		8+Ground	24 B	600 V	100 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Male Insert Gray 8+Ground Position Screw
