19431240757

Active

HARTING Technology Group

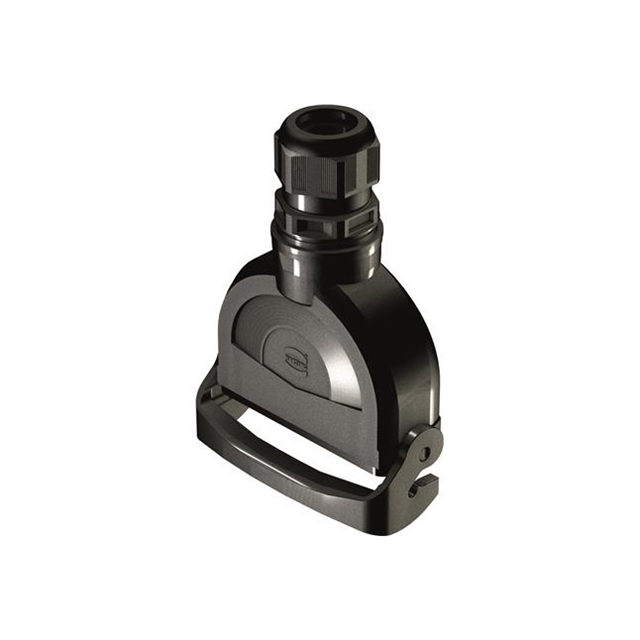

ENCLOSURE FOR CONNECTORS: HDC; SIZE 24B; FOR CABLE; HAN-ECO® B

Search across all available documentation for this part.

Active

HARTING Technology Group

ENCLOSURE FOR CONNECTORS: HDC; SIZE 24B; FOR CABLE; HAN-ECO® B

Technical Specifications

Parameters and characteristics for this part

Specification	19431240757

Connector Type	Hood - Coupling
Features	Cable to Cable
Housing Color	Black
Housing Material	Polyamide (PA), Nylon, Glass Filled
Ingress Protection	IP66
Lock Location	Locking Clip (1) on Hood
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	24 B
Style	Top Entry
Thread Size	M32

Part	Style	Housing Color	Ingress Protection	Lock Location	Housing Material	Operating Temperature [Max]	Operating Temperature [Min]	Thread Size	Connector Type	Size	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Features
HARTING Technology Group 19431240547	Side Entry	Black	IP66	Locking Clip (1) on Base Bottom	Polyamide (PA) Nylon Glass Filled	125 °C	-40 °C	M32	Hood	24 B
HARTING Technology Group 19431240297	Side Entry Dual	Black	IP66	Locking Clip (1) on Base Bottom	Polyamide (PA) Nylon Glass Filled	125 °C	-40 °C	M32	Base - Box Mount	24 B	5.669 "	65 mm	88 mm	144 mm	3.465 "	2.559 in
HARTING Technology Group 19431240252	Side Entry	Black	IP66	Locking Clip (1) on Base Bottom	Polyamide (PA) Nylon Glass Filled	125 °C	-40 °C	M32	Base - Box Mount	24 B	5.669 "	65 mm	88 mm	144 mm	3.465 "	2.559 in
HARTING Technology Group 19431240757	Top Entry	Black	IP66	Locking Clip (1) on Hood	Polyamide (PA) Nylon Glass Filled	125 °C	-40 °C	M32	Hood - Coupling	24 B							Cable to Cable
HARTING Technology Group 19431240447	Top Entry	Black	IP66	Locking Clip (1) on Base Bottom	Polyamide (PA) Nylon Glass Filled	125 °C	-40 °C	M32	Hood	24 B

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood - Coupling Connector Top Entry M32 24B IP66 - Dust Tight, Water Resistant
