19431240297

Obsolete

HARTING Technology Group

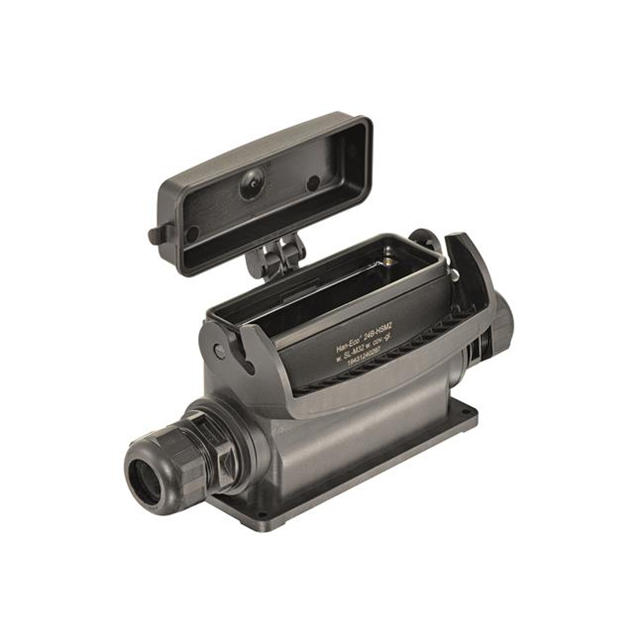

HAN-ECO 24B SURFACE MOUNT HOUSIN

Search across all available documentation for this part.

Obsolete

HARTING Technology Group

HAN-ECO 24B SURFACE MOUNT HOUSIN

Technical Specifications

Parameters and characteristics for this part

Specification	19431240297

Connector Type	Base - Box Mount
Housing Color	Black
Housing Material	Polyamide (PA), Nylon, Glass Filled
Ingress Protection	IP66
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	24 B
Size / Dimension [x]	5.669 "
Size / Dimension [x]	144 mm
Size / Dimension [y]	65 mm
Size / Dimension [y]	2.559 in
Size / Dimension [z]	88 mm
Size / Dimension [z]	3.465 "
Style	Side Entry, Dual
Thread Size	M32

Part	Style	Housing Color	Ingress Protection	Lock Location	Housing Material	Operating Temperature [Max]	Operating Temperature [Min]	Thread Size	Connector Type	Size	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Features
HARTING Technology Group 19431240547	Side Entry	Black	IP66	Locking Clip (1) on Base Bottom	Polyamide (PA) Nylon Glass Filled	125 °C	-40 °C	M32	Hood	24 B
HARTING Technology Group 19431240297	Side Entry Dual	Black	IP66	Locking Clip (1) on Base Bottom	Polyamide (PA) Nylon Glass Filled	125 °C	-40 °C	M32	Base - Box Mount	24 B	5.669 "	65 mm	88 mm	144 mm	3.465 "	2.559 in
HARTING Technology Group 19431240252	Side Entry	Black	IP66	Locking Clip (1) on Base Bottom	Polyamide (PA) Nylon Glass Filled	125 °C	-40 °C	M32	Base - Box Mount	24 B	5.669 "	65 mm	88 mm	144 mm	3.465 "	2.559 in
HARTING Technology Group 19431240757	Top Entry	Black	IP66	Locking Clip (1) on Hood	Polyamide (PA) Nylon Glass Filled	125 °C	-40 °C	M32	Hood - Coupling	24 B							Cable to Cable
HARTING Technology Group 19431240447	Top Entry	Black	IP66	Locking Clip (1) on Base Bottom	Polyamide (PA) Nylon Glass Filled	125 °C	-40 °C	M32	Hood	24 B

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Base - Box Mount Connector Side Entry, Dual M32 24B IP66 - Dust Tight, Water Resistant
