19431240547

Active

HARTING Technology Group

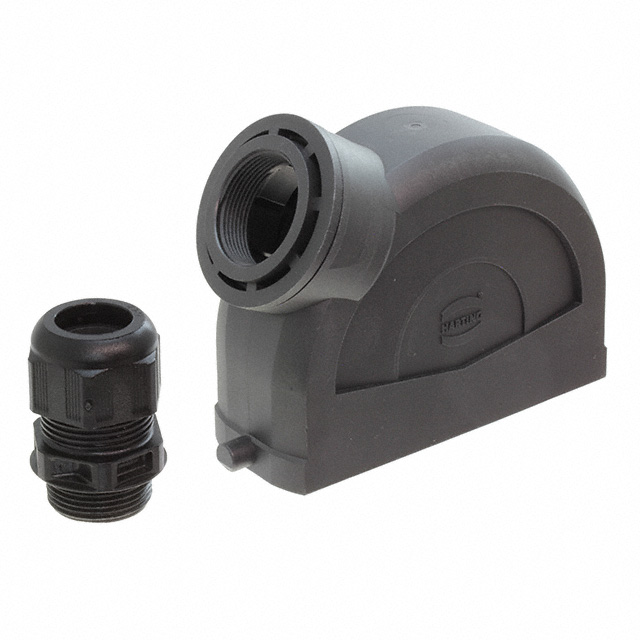

HAN-ECO 24B HOOD SINGLE LEVER, S

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN-ECO 24B HOOD SINGLE LEVER, S

Technical Specifications

Parameters and characteristics for this part

Specification	19431240547

Connector Type	Hood
Housing Color	Black
Housing Material	Polyamide (PA), Nylon, Glass Filled
Ingress Protection	IP66
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	24 B
Style	Side Entry
Thread Size	M32

Part	Style	Housing Color	Ingress Protection	Lock Location	Housing Material	Operating Temperature [Max]	Operating Temperature [Min]	Thread Size	Connector Type	Size	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Features
HARTING Technology Group 19431240547	Side Entry	Black	IP66	Locking Clip (1) on Base Bottom	Polyamide (PA) Nylon Glass Filled	125 °C	-40 °C	M32	Hood	24 B
HARTING Technology Group 19431240297	Side Entry Dual	Black	IP66	Locking Clip (1) on Base Bottom	Polyamide (PA) Nylon Glass Filled	125 °C	-40 °C	M32	Base - Box Mount	24 B	5.669 "	65 mm	88 mm	144 mm	3.465 "	2.559 in
HARTING Technology Group 19431240252	Side Entry	Black	IP66	Locking Clip (1) on Base Bottom	Polyamide (PA) Nylon Glass Filled	125 °C	-40 °C	M32	Base - Box Mount	24 B	5.669 "	65 mm	88 mm	144 mm	3.465 "	2.559 in
HARTING Technology Group 19431240757	Top Entry	Black	IP66	Locking Clip (1) on Hood	Polyamide (PA) Nylon Glass Filled	125 °C	-40 °C	M32	Hood - Coupling	24 B							Cable to Cable
HARTING Technology Group 19431240447	Top Entry	Black	IP66	Locking Clip (1) on Base Bottom	Polyamide (PA) Nylon Glass Filled	125 °C	-40 °C	M32	Hood	24 B

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood Connector Side Entry M32 24B IP66 - Dust Tight, Water Resistant
