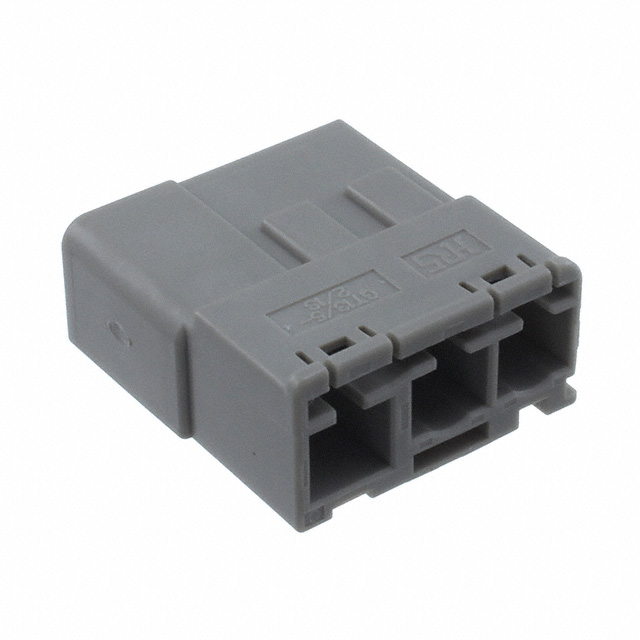

GT13/5-2/1S-HU

Active

Hirose Electric USA, Inc.

SHIELDED COAXIAL CABLES CONNECTORS USING TWIN CRIMP TECHNOLOGY

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

SHIELDED COAXIAL CABLES CONNECTORS USING TWIN CRIMP TECHNOLOGY

Technical Specifications

Parameters and characteristics for this part

Specification	GT13/5-2/1S-HU

Accessory Type	Housing
Body Material	Polybutylene Terephthalate (PBT)
Color	Gray
Connector Style	F
Features	3 Positions
For Use With/Related Products	F Terminals

Bench Top Tools CRIMP TERM 20-22 AWG GT13

Part	Fastening Type	Dielectric Material	Body Material	Center Contact Plating	Features	Housing Color	Center Contact Material	Number of Ports	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Contact Termination	Frequency - Max [Max]	Connector Style	Mating Cycles	Impedance	Mounting Type	Voltage Rating	For Use With/Related Products	Accessory Type	Color
Hirose Electric USA, Inc. GT13S-1/1/1/1PP-DS	Push-Pull	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)	Tin	Board Lock Mounting Flange	Gray	Copper Alloy	4	-30 ░C	105 ░C	Male Pin Receptacle	Solder	1 GHz	Coaxial	30	50 Ohms	Through Hole Right Angle	250 VDC
Hirose Electric USA, Inc. GT13-1P-DS(71)	Push-Pull	Polybutylene Terephthalate (PBT)		Tin				1	-30 ░C	105 ░C	Male Pin Receptacle	Solder	1 GHz	Coaxial	30	50 Ohms	Through Hole Right Angle	250 VDC
Hirose Electric USA, Inc. GT13-1S-HU														F					F Terminals	Housing
Hirose Electric USA, Inc. GT13/5-2/1S-HU			Polybutylene Terephthalate (PBT)		3 Positions									F					F Terminals	Housing	Gray
Hirose Electric USA, Inc. GT13-1P-DS(70)	Push-Pull	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)	Tin		Gray	Brass	1	-30 ░C	105 ░C	Male Pin Receptacle	Solder	1 GHz	Coaxial	30	50 Ohms	Through Hole Right Angle	250 VDC
Hirose Electric USA, Inc. GT13/5-2/1P-R			Polybutylene Terephthalate (PBT)																GT13 Housings 3 Positions	Retainer	Gray
Hirose Electric USA, Inc. GT13/5-2/1S-R			Polybutylene Terephthalate (PBT)																GT13 Housings 3 Positions	Retainer	Gray

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	100	$ 0.80
Newark	Each	1	$ 1.08
		2500	$ 0.96

General part information

Bench Top Tools CRIMP TERM 20-22 AWG GT13

Technical documentation and resources
