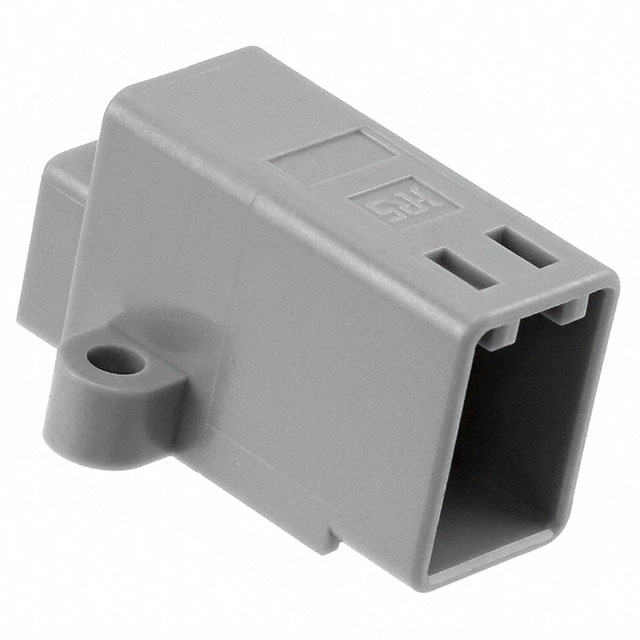

GT13-1P-DS(70)

Obsolete

Hirose Electric USA, Inc.

CONN COAX RCPT R/A 50 OHM PCB

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

CONN COAX RCPT R/A 50 OHM PCB

Technical Specifications

Parameters and characteristics for this part

Specification	GT13-1P-DS(70)

Body Material	Polybutylene Terephthalate (PBT)
Center Contact Material	Brass
Center Contact Plating	Tin
Connector Style	Coaxial
Connector Type	Male Pin, Receptacle
Contact Termination	Solder
Dielectric Material	Polybutylene Terephthalate (PBT)
Fastening Type	Push-Pull
Frequency - Max [Max]	1 GHz
Housing Color	Gray
Impedance	50 Ohms
Mating Cycles	30
Mounting Type	Through Hole, Right Angle
Number of Ports	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Voltage Rating	250 VDC

Bench Top Tools CRIMP TERM 20-22 AWG GT13

Part	Fastening Type	Dielectric Material	Body Material	Center Contact Plating	Features	Housing Color	Center Contact Material	Number of Ports	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Contact Termination	Frequency - Max [Max]	Connector Style	Mating Cycles	Impedance	Mounting Type	Voltage Rating	For Use With/Related Products	Accessory Type	Color
Hirose Electric USA, Inc. GT13S-1/1/1/1PP-DS	Push-Pull	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)	Tin	Board Lock Mounting Flange	Gray	Copper Alloy	4	-30 ░C	105 ░C	Male Pin Receptacle	Solder	1 GHz	Coaxial	30	50 Ohms	Through Hole Right Angle	250 VDC
Hirose Electric USA, Inc. GT13-1P-DS(71)	Push-Pull	Polybutylene Terephthalate (PBT)		Tin				1	-30 ░C	105 ░C	Male Pin Receptacle	Solder	1 GHz	Coaxial	30	50 Ohms	Through Hole Right Angle	250 VDC
Hirose Electric USA, Inc. GT13-1S-HU														F					F Terminals	Housing
Hirose Electric USA, Inc. GT13/5-2/1S-HU			Polybutylene Terephthalate (PBT)		3 Positions									F					F Terminals	Housing	Gray
Hirose Electric USA, Inc. GT13-1P-DS(70)	Push-Pull	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)	Tin		Gray	Brass	1	-30 ░C	105 ░C	Male Pin Receptacle	Solder	1 GHz	Coaxial	30	50 Ohms	Through Hole Right Angle	250 VDC
Hirose Electric USA, Inc. GT13/5-2/1P-R			Polybutylene Terephthalate (PBT)																GT13 Housings 3 Positions	Retainer	Gray
Hirose Electric USA, Inc. GT13/5-2/1S-R			Polybutylene Terephthalate (PBT)																GT13 Housings 3 Positions	Retainer	Gray

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bench Top Tools CRIMP TERM 20-22 AWG GT13

Technical documentation and resources
