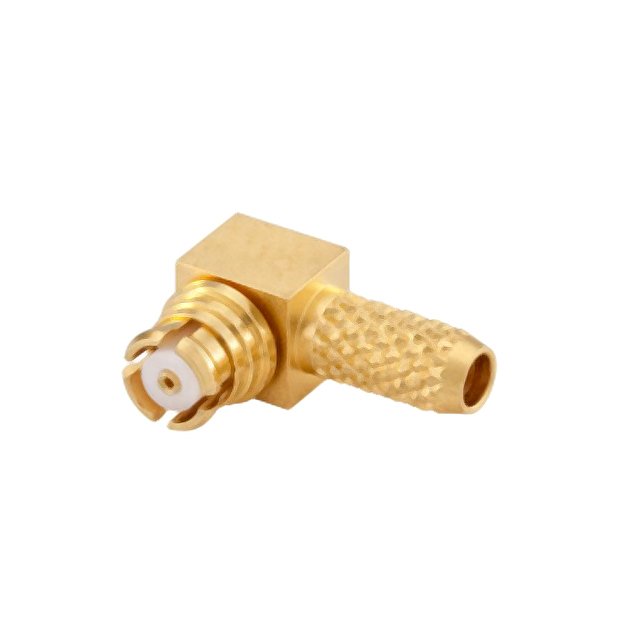

19K202-301L5 - 19K202-301L5

19K202-301L5

Active
Rosenberger

CONN SMP JACK R/A 50OHM SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
19K202-301L5 - 19K202-301L5

19K202-301L5

Active
Rosenberger

CONN SMP JACK R/A 50OHM SOLDER

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics for this part

Specification19K202-301L5
Body FinishGold
Body MaterialBrass
Cable GroupRG-178B, 196A
Center Contact MaterialBeryllium Copper
Center Contact PlatingGold
Connector TypeFemale Socket, Jack
Contact TerminationSolder
Dielectric MaterialPolytetrafluoroethylene (PTFE)
Fastening TypeSnap-On
Frequency - Max [Max]26.5 GHz
Housing ColorGold
Impedance50 Ohms
Includes1 End Cap, 1 Connector
Mounting TypeFree Hanging (In-Line), Right Angle
Number of Ports1
Operating Temperature [Max]155 °C
Operating Temperature [Min]-65 ░C
Shield TerminationCrimp
Voltage Rating335 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
Digikey- 1$ 17.00
10$ 14.73
25$ 13.96
50$ 13.76
100$ 12.14
300$ 11.33
500$ 11.09

Description

General part information

19K202 Series

SMP Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line), Right Angle Solder
