19K202-270L5-NM
ActiveRosenberger

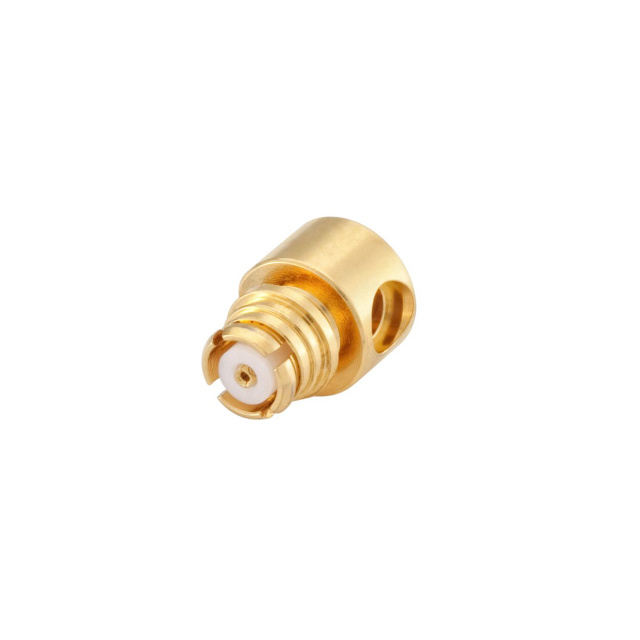

SMP NON MAGNETIC RIGHT ANGLE JAC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
19K202-270L5-NM
ActiveRosenberger
SMP NON MAGNETIC RIGHT ANGLE JAC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 19K202-270L5-NM |
|---|---|
| Body Finish | Gold |
| Body Material | Beryllium Copper |
| Cable Group | UT-47 |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Type | Female Socket, Jack |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On |
| Frequency - Max [Max] | 26.5 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Mating Cycles | 1000 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Solder |
| Voltage Rating | 335 V |
19K202 Series
| Part | Contact Termination | Connector Type | Body Finish | Voltage Rating | Fastening Type | Body Material | Dielectric Material | Frequency - Max [Max] | Impedance | Center Contact Plating | Includes | Shield Termination | Operating Temperature [Max] | Operating Temperature [Min] | Center Contact Material | Number of Ports | Housing Color | Mounting Type | Cable Group | Mating Cycles |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Rosenberger | Solder | Female Socket Jack | Gold | 335 V | Snap-On | Beryllium Copper | Polytetrafluoroethylene (PTFE) | 26.5 GHz | 50 Ohms | Gold | 1 Connector 1 End Cap 1 Insulator | Solder | 155 °C | -65 ░C | Beryllium Copper | 1 | Gold | Free Hanging (In-Line) Right Angle | UT-47 | |
Rosenberger | Solder | Female Socket Jack | Gold | 335 V | Snap-On | Beryllium Copper | Polytetrafluoroethylene (PTFE) | 26.5 GHz | 50 Ohms | Gold | Solder | 155 °C | -65 ░C | Beryllium Copper | 1 | Gold | Free Hanging (In-Line) | UT-47 | 1000 | |
Rosenberger | Solder | Female Socket Jack | Gold | 335 V | Snap-On | Brass | Polytetrafluoroethylene (PTFE) | 26.5 GHz | 50 Ohms | Gold | 1 Connector 1 End Cap | Crimp | 155 °C | -65 ░C | Beryllium Copper | 1 | Gold | Free Hanging (In-Line) Right Angle | 196A RG-178B | |
Rosenberger | Solder | Female Socket Jack | Gold | 335 V | Snap-On | Bronze | Polytetrafluoroethylene (PTFE) | 26.5 GHz | 50 Ohms | Gold | Crimp | 155 °C | -65 ░C | Beryllium Copper | 1 | Gold | Free Hanging (In-Line) Right Angle | 196A RG-178B | 1000 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
19K202 Series
SMP Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line) Solder
