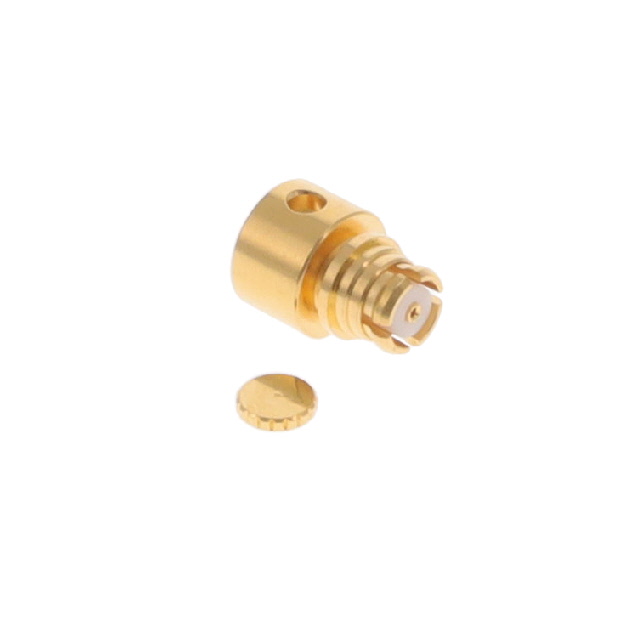

19K202-270L5

Obsolete

Rosenberger

CONN SMP JACK R/A 50OHM SOLDER

Search across all available documentation for this part.

Obsolete

Rosenberger

CONN SMP JACK R/A 50OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	19K202-270L5

Body Finish	Gold
Body Material	Beryllium Copper
Cable Group	UT-47
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	26.5 GHz
Housing Color	Gold
Impedance	50 Ohms
Includes	1 End Cap, 1 Insulator, 1 Connector
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	335 V

Part	Contact Termination	Connector Type	Body Finish	Voltage Rating	Fastening Type	Body Material	Dielectric Material	Frequency - Max [Max]	Impedance	Center Contact Plating	Includes	Shield Termination	Operating Temperature [Max]	Operating Temperature [Min]	Center Contact Material	Number of Ports	Housing Color	Mounting Type	Cable Group	Mating Cycles
Rosenberger 19K202-270L5	Solder	Female Socket Jack	Gold	335 V	Snap-On	Beryllium Copper	Polytetrafluoroethylene (PTFE)	26.5 GHz	50 Ohms	Gold	1 Connector 1 End Cap 1 Insulator	Solder	155 °C	-65 ░C	Beryllium Copper	1	Gold	Free Hanging (In-Line) Right Angle	UT-47
Rosenberger 19K202-270L5-NM	Solder	Female Socket Jack	Gold	335 V	Snap-On	Beryllium Copper	Polytetrafluoroethylene (PTFE)	26.5 GHz	50 Ohms	Gold		Solder	155 °C	-65 ░C	Beryllium Copper	1	Gold	Free Hanging (In-Line)	UT-47	1000
Rosenberger 19K202-301L5	Solder	Female Socket Jack	Gold	335 V	Snap-On	Brass	Polytetrafluoroethylene (PTFE)	26.5 GHz	50 Ohms	Gold	1 Connector 1 End Cap	Crimp	155 °C	-65 ░C	Beryllium Copper	1	Gold	Free Hanging (In-Line) Right Angle	196A RG-178B
Rosenberger 19K202-301L5-NM	Solder	Female Socket Jack	Gold	335 V	Snap-On	Bronze	Polytetrafluoroethylene (PTFE)	26.5 GHz	50 Ohms	Gold		Crimp	155 °C	-65 ░C	Beryllium Copper	1	Gold	Free Hanging (In-Line) Right Angle	196A RG-178B	1000

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

SMP Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line), Right Angle Solder
